Andalucia

Andalucia 3 Lite (1W3H) Entry Door with Sidelights & Transom

MSRP:
Was:
Price: Now: $6,100.00
(You save )
(1 review) Write a Review

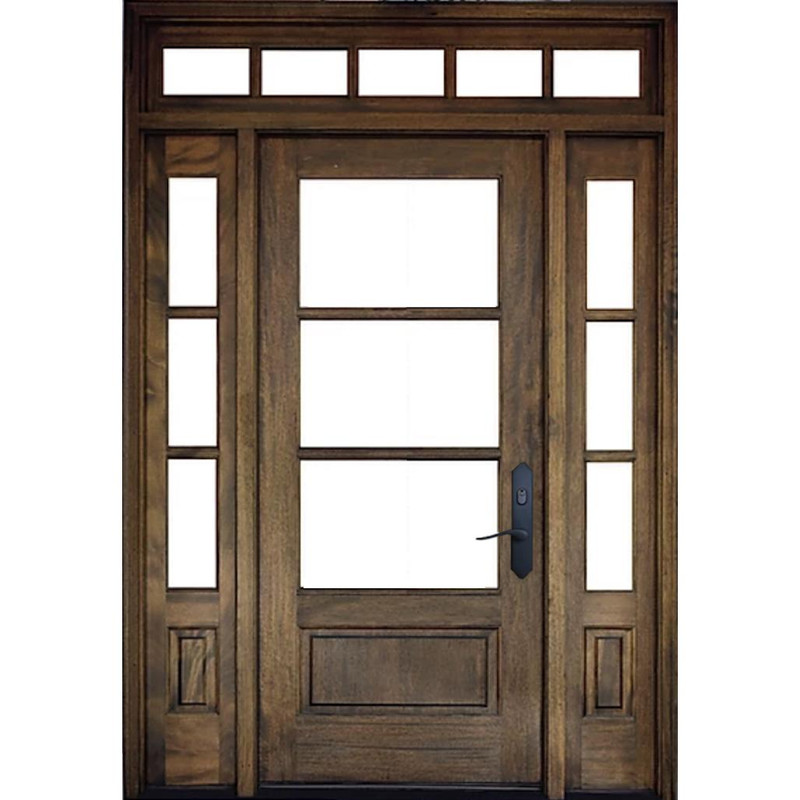

Grand Entry Doors Andalucia 3 Lite 1W3H True Divided Lite Entry Door with Sidelights and Transom | Wood Species: Mahogany | Pictured Finished / Stained. All wooden front doors are priced and delivered as unfinished / not stained pre-hung units. No finish options available for shipped units.

Make a grand entrance with our 3-lite (1W3H) mahogany wood entry door with sidelights and transom. Made with the highest quality materials and expert craftsmanship, this door is the perfect addition to any home. This door boasts a beautiful rich color and stunning wood grain patterns. Choose(...Full Description & Specifications Below ↓)

Current Lead Times (as of 03/28/24)

In-Stock - Typically ships in 4-5 weeks (from NC). Transit times will vary. Please Note: These are the same lead times that will be quoted by phone.
  • Clear Beveled
  • Flemish
  • Black / Dark Bronze
  • Satin Nickel
  • Black / Dark Bronze
  • Nickel
  • No Handleset Prep
  • Double Bore, 2-3/8" Backset - Handleset & Deadbolt
  • Multi-Point Locking (GU-2 American Cylinder Hub Above Handle 3-5/8” Center-to-Center) - Multi-Point
  • No Handleset Hardware
  • Recommended – Will purchase multipoint handleset trim separately elsewhere. Must be compatible with GU/Emtek Door Configuration 2 - American Cylinder Hub Above Handle 3-5/8” Center-to-Center - Multi-Point
  • Emtek Multipoint Scroll Trim, Keyed with American Cylinder - Multi-Point
  • Emtek Multipoint Square Trim, Keyed with American Cylinder - Multi-Point
  • Flat Black
  • Satin Nickel
Get Free Quote Now
Price
$6,100.00
Price As Configured
MSRP:
Was:
Price: Now: $6,100.00
(You save )
Shipping:
Calculated at Checkout

Please check your selections carefully. Each door is prepped to your specifications. Buyer assumes all risks of incorrect measurements. Your order authorizes Grand Entry Doors to furnish the products described and rendered. Grand Entry Doors is only responsible for furnishing and shipping the item as specified on your order. Please review our return policy prior to ordering. If you have any questions please contact us prior to placing your order.

Requirements for adequate overhang protection: Installer must ensure proper protection requirements are provided where the door will be installed. All doors must be installed providing sufficient protection from exposure to weather including excessive moisture/rain as well as excessive heat due to sun exposure. This protection required includes adequate overhang distance that is at a minimum projection from the home at one half the distance from the floor of the overhang to the ceiling of the overhang. Additionally, the overhang should extend a minimum of 3 ft in width from each side of the door unit. Failure to provide adequate overhang protection will void the warranty.
All wood doors are constructed using floating panels. This construction method allows for expansion and contraction. Exposure to severe moisture such as rain in an unprotected environment may result in water penetration through the panels and is not considered a defect. In the event of water penetrating through the edges of the panels in this environment, it will be the consumers responsibility to caulk and or provide a remedy for the water penetration.

Staining or painting the door black or any other dark opaque colors will void the warranty. These colors cause harm to the wood components by absorbing excess heat/UV rays.

Make a grand entrance with our 3-lite (1W3H) mahogany wood entry door with sidelights and transom. Made with the highest quality materials and expert craftsmanship, this door is the perfect addition to any home. This door boasts a beautiful rich color and stunning wood grain patterns. Choose from clear bevel or flemish low-e glass options to add an elegant touch to your entryway while also improving energy efficiency.

This door measures 36" x 96" and comes with 12" sidelights and a transom, creating a grand entrance that will leave your guests in awe. Perfect for new construction homes, home remodels or replacement doors, this in-stock quick-ship door is an excellent choice for any project.

Our expert craftsmen take great pride in every door they create, ensuring that each door is not only beautiful but also durable and of the highest quality. With our in-stock quick-ship option, you can have your new front door delivered to your job site in no time. Whether you're looking for a front door for a new construction home, upgrading the curb appeal of your home or need a replacement door, our 3-lite (1W3H) mahogany wood entry door with sidelights and transom is the perfect choice.

Andalucia 3-Lite (1W3H) Mahogany Wood Front Door with Sidelights and Transom

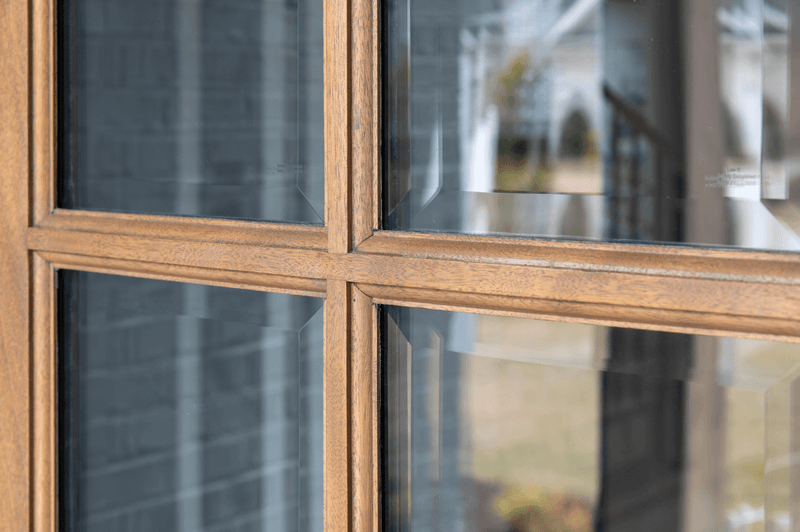

The Andalucia 3-Lite (1W3H) True Divided Lite Entry Door with Sidelights & Transom offers an engineered stile and rail construction crafted of a hardwood stave core offering more stability and resistance to warping than solid wood. The Andalucia is a True Divided Lite (TDL) entry door featuring individual glass units divided by muntin bars. Low-E glass better insulates your home by keeping heat from escaping during the cooler months, and helps to minimize the heat entering your home during the warmer months.

All wooden front doors are priced and delivered as unfinished (not stained) pre-hung units.

The Andalucia offers

  • 1'0"/3'0"/1'0" x 8'0" w 1'0" Transom size (Custom doors sizes available with quote)
  • 1-3/4" stain grade mahogany (Okoume)
  • Clear bevel and flemish glass options
  • Low-E glass (Low Emissivity Glass) - Tempered / Insulating Glass
  • Wood entry door with engineered stile and rail construction
  • Hardwood stave core with mahogany veneer offers more stability and resistance to warping than solid wood.
  • Unfinished (not stained), prehung exterior door unit includes the jambs, exterior brickmould, weather-stripping, door sweep, adjustable threshold (sill), 4x4 ball bearing hinges.

Entry Door Sizes

Door SizeFrame SizeRough OpeningOutside Brickmould
1'0"/3'0"/1'0" x 8'0" w 1'0" Transom 65" x 112 1/2" 66" x 113" 67 1/2" x 113 3/4"


Custom sizes and options available upon request.

Entry Door Energy Performance

U-Factor, Solar Heat Gain Coefficient in accordance with the National Fenestration Rating Council (NFRC). The National Fenestration Rating Council (NFRC) is a United States 501(c)3 non-profit organization which sponsors an energy efficiency certification and labeling program for windows, doors, and skylights.

  • U-Factor (Btu-in/hr-ft2-F) = 0.40
  • Solar Heat Gain Coefficient (SHGC) = 0.21

Pre-Hung Door Unit

  • 4-9/16" or 6-9/16" wide jambs (with 4-9/16" jamb commonly used for 2x4 framing and 6-9/16" jamb commonly used for 2x6 framing). Custom jamb sizes available upon request.
  • Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the prehung door to keep out drafts
  • Commercial grade 4"x4" bearing hinges in Black/Oil Rubbed Bronze or Satin Nickel
  • Adjustable aluminum door sill (threshold) in Black/Oil Rubbed Bronze or Satin Nickel
  • Door sweep to seal the gap between the bottom of the door and the threshold/sill
  • Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware)
  • Exterior brickmould
  • Double entry door units include T-astrigal and a pair of flush-mount slide bolts installed on the secondary (passive) door

Door Jambs

Our pre-hung units are hung on on slotted jambs for installation of weather-stripping.

  • Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the door to keep out drafts
  • 4-9/16" jamb is most commonly used for 2x4 framing
  • 6-9/16" jamb is most commonly used for 2x6 framing
  • Custom jamb sizes available (additional charges may apply)

Hinges

Our pre-hung units include commercial grade, 4x4 ball bearing hinges.

  • 4"x4" commercial grade ball bearing hinges (Three are used on 6/8 doors and arch top doors, and four on taller square top units).
  • Non rising steel pin with button tip and plug
  • Rounded 1/4" radius corner
  • Black/Oil Rubbed Bronze or Satin Nickel finish

Sill / Threshold

Each pre-hung unit comes with a composite adjustable aluminum sill. The composite aluminum is used to prevent warping, rotting, etc.

  • Features a composite substrate that will not warp or rot, eliminating the worries of wood.
  • Black/Oil Rubbed Bronze or Satin Nickel finish
  • Outswing bumper sill available for outswing units
  • Low-profile (ADA-compliant) sills are available. Please contact us for pricing

Wood Door Handleset Preparation

  • Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware). Single bore on passive can also be provided.
  • Standard Handle and Deadbolt Preparation at 2-3/8" backset (2-3/4" available upon request)
  • Bore diameter: 2-1/8"
  • For double bore, deadbolt is drilled 5-1/2" above the handle
  • Multipoint locking also available

Additional Information Regarding Pre-Hung Units

Product Compliance & Suitability

Jurisdictions have varying laws, codes and regulations governing construction, installation, etc. Please review applicable laws, codes and regulations for your local jurisdiction to be sure that the construction, installation, and/or use involving the units is compliant.

Florida Approval Code: No
FSC Certified: No

Requirements For Adequate Overhang Protection Of Wood Door

Installer must ensure proper protection requirements are provided where the door will be installed. All doors must be installed providing sufficient protection from exposure to weather including excessive moisture/rain as well as excessive heat due to sun exposure. This protection required includes adequate overhang distance that is at a minimum projection from the home at one half the distance from the floor of the overhang to the ceiling of the overhang.

Manufacture's Warranty

Please review our FAQs for common questions, definitions and clarifications.



Our doors are shipped ground via common carrier (LTL) on a secure crate system designed to protect them during shipment. Doors and other large items will be shipped to a local delivery terminal. The carrier will contact you when the unit arrives at their delivery terminal to schedule a delivery appointment. Deliveries are generally made between the hours of 8:00 AM and 5:00 PM Monday through Friday.

Our carriers provide a curbside delivery with lift-gate and pallet jack service. Curbside delivery service provides delivery of your door(s) to the curb at the end of your driveway. This service does not include set up or assembly of items or removal of packaging materials. In most cases the delivery truck will pull up to the curb outside of your job site within your appointment window. From there, you will be responsible for unloading the item(s) from the truck and any further transport beyond that point.

Large doors might exceed the capacity of the truck’s lift-gate. In this case, it is the customer's responsibility to unload the doors from the back of the truck. The driver will sometimes assist in removing the product from the truck, but they are not required to do so.

Our door units are heavy and therefore we recommend at least 2 people be present at time of delivery. The truck driver might assist with moving it into a location such as a garage, but they are not required to do so.
