Experience the unparalleled beauty, durability, and quality of the Andalucia 9-Lite single front entry door for yourself and elevate your home's curb appeal with this timeless and elegant addition. With its superior craftsmanship and attention to detail, this door is sure to impress and become a cherished feature of your home for years to come. This stunning door has quickly become a customer favorite, and it's easy to see why.
With its traditional design elements, the Andalucia 9-Lite is a perfect fit for a wide range of architectural styles, from charming cottages to modern farmhouses, contemporary homes, and craftsman-style bungalows. Its timeless design adds a touch of sophistication and elegance to any home, making it one of the most popular and sought-after options for front doors.
The Andalucia 9-Lite is not only beautiful but also built to last. Constructed from the finest quality materials, this mahogany wood door is engineered to withstand the test of time and the elements, ensuring that your investment is well worth it. Featuring true divided lite (TDL) Low E Glass, the Andalucia 9-Lite allows natural light to flood into your home while maintaining energy and thermal efficiency. This means that you can enjoy a bright and welcoming entryway while keeping your home comfortable and energy-efficient.
Andalucia 9-Lite Prairie Mahogany True Divided Lite Single Entry Door
The Andalucia 9-Lite Prairie True Divided Lite Single Entry Door offers an engineered stile and rail construction crafted of a hardwood stave core. This construction method results in a door that is stronger and more stable than a solid wood door. The core is then finished with a mahogany solid wood veneer, providing a beautiful and natural look that is sure to enhance the appearance of your home. This veneer is carefully applied to the door, ensuring a seamless and consistent appearance. The Andalucia is a True Divided Lite (TDL) entry door featuring individual glass units divided by muntin bars. Low-E glass better insulates your home by keeping heat from escaping during the cooler months, and helps to minimize the heat entering your home during the warmer months.
All wooden front doors are priced and delivered as unfinished (not stained) pre-hung units.
The Andalucia offers
- 3'0" X 6'8" and 2'8" and 3'0" X 8'0" sizes (Custom sizes available with quote)
- 1-3/4" stain grade mahogany (Okoume)
- Clear bevel glass
- Low-E glass (Low Emissivity Glass) - Tempered / Insulating Glass
- Wood entry door with engineered stile and rail construction
- Hardwood stave core with mahogany veneer offers more stability and resistance to warping than solid wood.
- Unfinished (not stained), prehung exterior door unit includes the jambs, exterior brickmould, weather-stripping, door sweep, adjustable threshold (sill), 4x4 ball bearing hinges.
- Can be considered an option for those seeking interior / internal doors with glass (contact us to inquire)
Entry Door Sizes
|Door Size||Frame Size||Rough Opening||Outside Brickmould|
|3'0" x 6'8"||37 3/4" x 83"||38 1/2" x 83 1/2"||40 1/4" x 84 1/4"|
|2'8" x 8'0"||33 3/4" x 99"||34 1/2" x 99 1/2"||36 1/4" x 100 1/4"|
|3'0" x 8'0"||37 3/4" x 99"||38 1/2" x 99 1/2"||40 1/4" x 100 1/4"|
Custom sizes and options available upon request.
Entry Door Energy Performance
U-Factor, Solar Heat Gain Coefficient in accordance with the National Fenestration Rating Council (NFRC). The National Fenestration Rating Council (NFRC) is a United States 501(c)3 non-profit organization which sponsors an energy efficiency certification and labeling program for windows, doors, and skylights.
- U-Factor (Btu-in/hr-ft2-F) = 0.40
- Solar Heat Gain Coefficient (SHGC) = 0.21
Pre-Hung Door Unit
- 4-9/16" or 6-9/16" wide jambs (with 4-9/16" jamb commonly used for 2x4 framing and 6-9/16" jamb commonly used for 2x6 framing). Custom jamb sizes available upon request.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the prehung door to keep out drafts
- Commercial grade 4"x4" bearing hinges in Black/Oil Rubbed Bronze or Satin Nickel
- Adjustable aluminum door sill (threshold) in Black/Oil Rubbed Bronze or Satin Nickel
- Door sweep to seal the gap between the bottom of the door and the threshold/sill
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware)
- Exterior brickmould
- Double entry door units include T-astrigal and a pair of flush-mount slide bolts installed on the secondary (passive) door
Our pre-hung units are hung on on slotted jambs for installation of weather-stripping.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the door to keep out drafts
- 4-9/16" jamb is most commonly used for 2x4 framing
- 6-9/16" jamb is most commonly used for 2x6 framing
- Custom jamb sizes available (additional charges may apply)

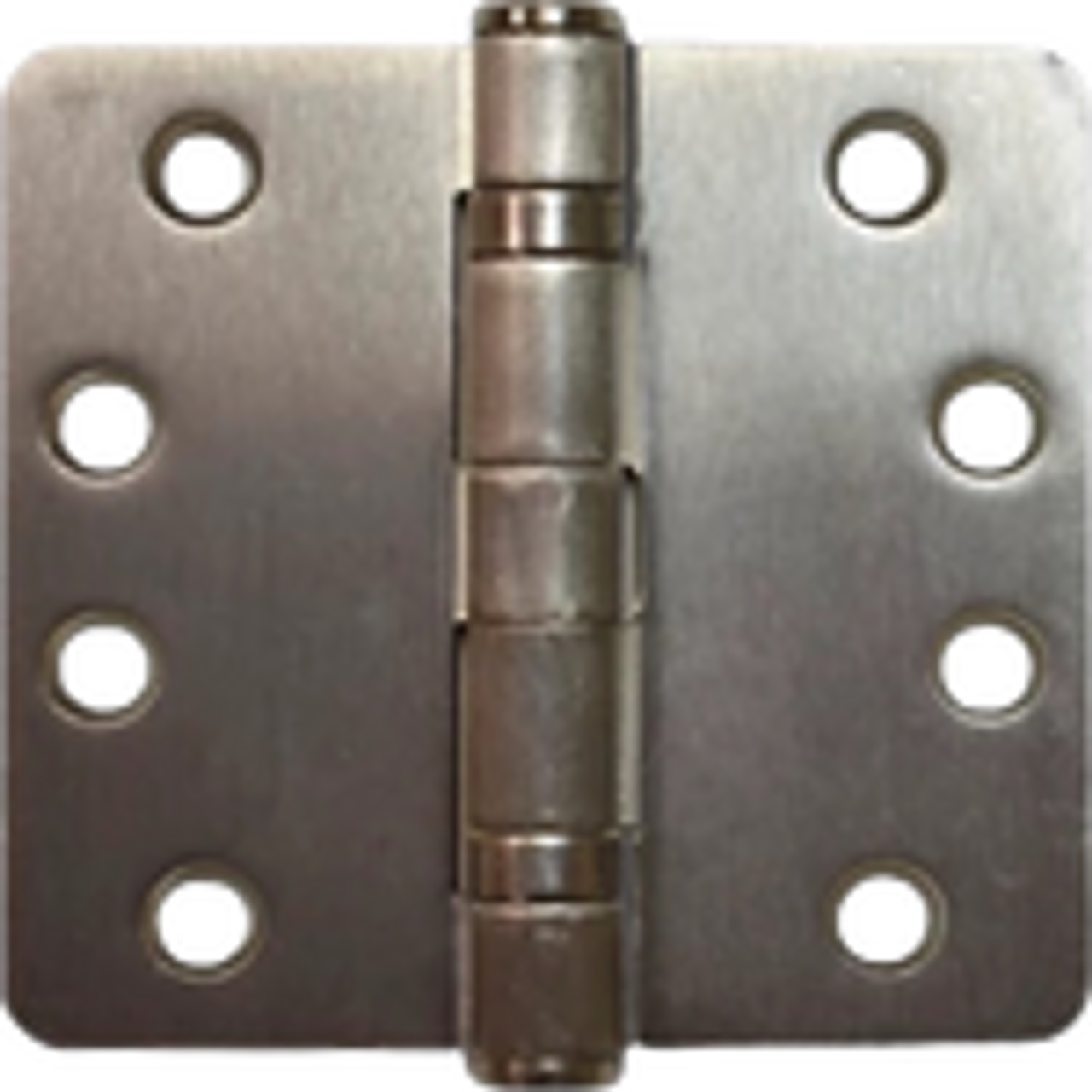

Our pre-hung units include commercial grade, 4x4 ball bearing hinges.

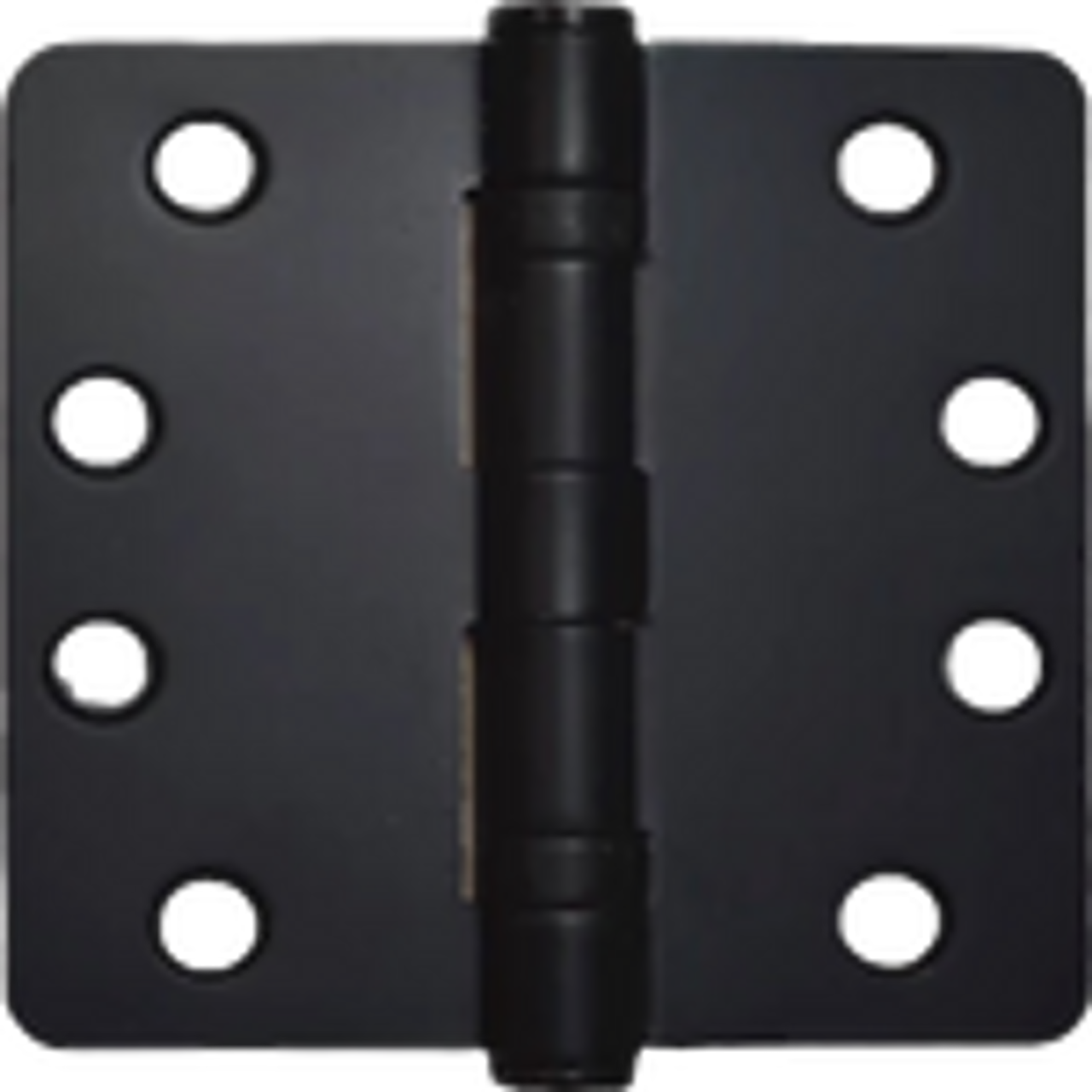

- 4"x4" commercial grade ball bearing hinges (Three are used on 6/8 doors and arch top doors, and four on taller square top units).
- Non rising steel pin with button tip and plug
- Rounded 1/4" radius corner
- Black/Oil Rubbed Bronze or Satin Nickel finish

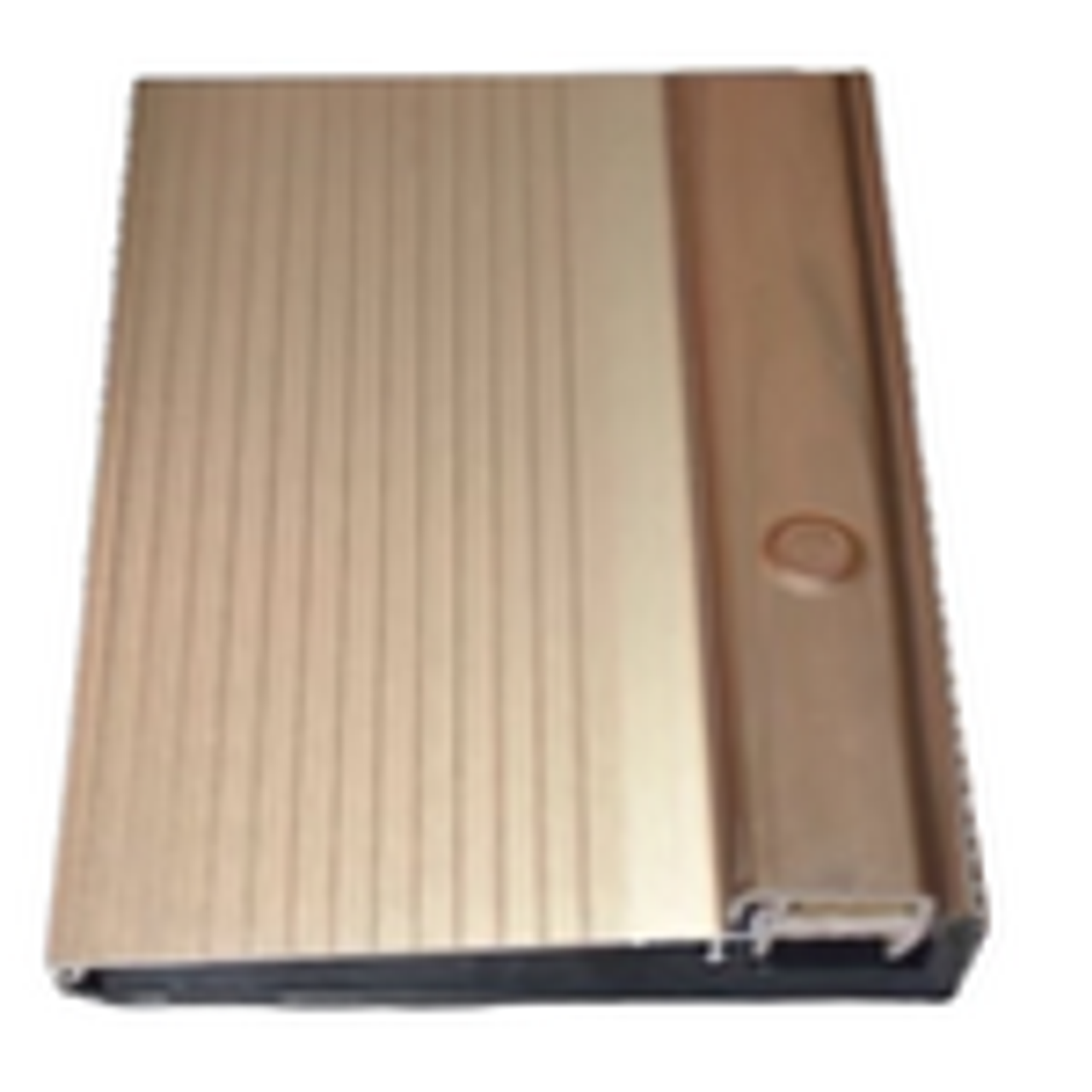

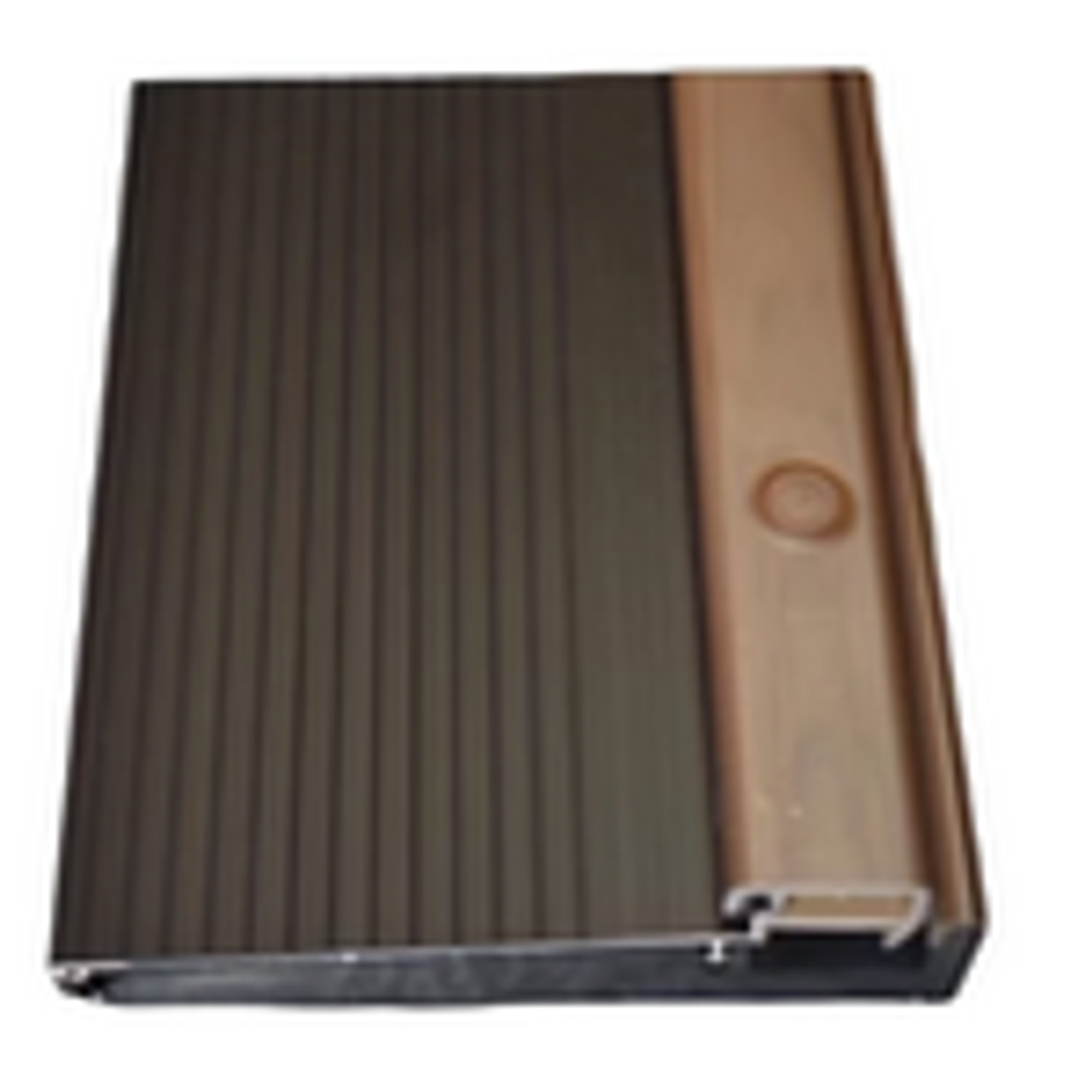

Sill / Threshold
Each pre-hung unit comes with a composite adjustable aluminum sill. The composite aluminum is used to prevent warping, rotting, etc.
- Features a composite substrate that will not warp or rot, eliminating the worries of wood.

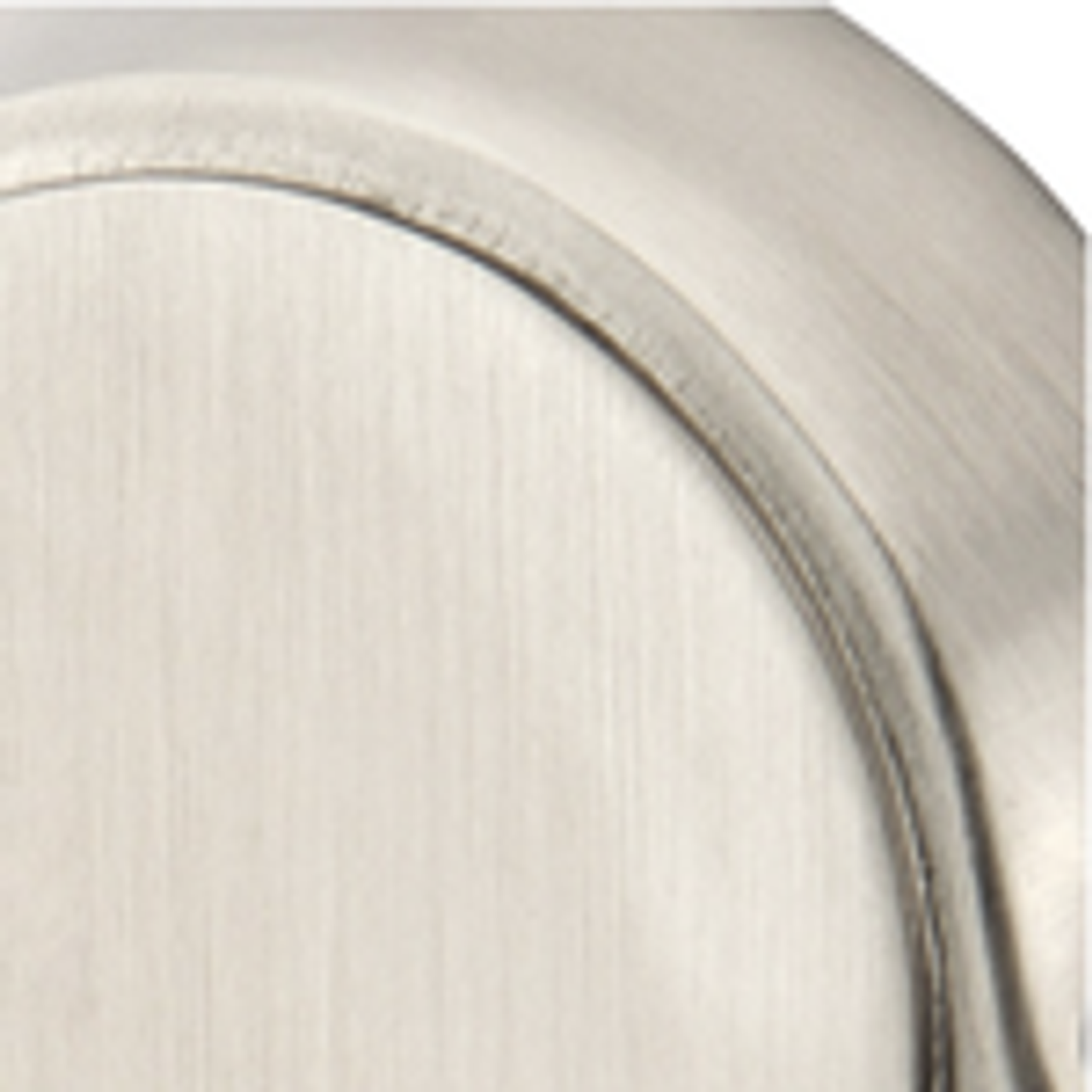

- Black/Oil Rubbed Bronze or Satin Nickel finish
- Outswing bumper sill available for outswing units
- Low-profile (ADA-compliant) sills are available. Please contact us for pricing
Wood Door Handleset Preparation
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware). Single bore on passive can also be provided.

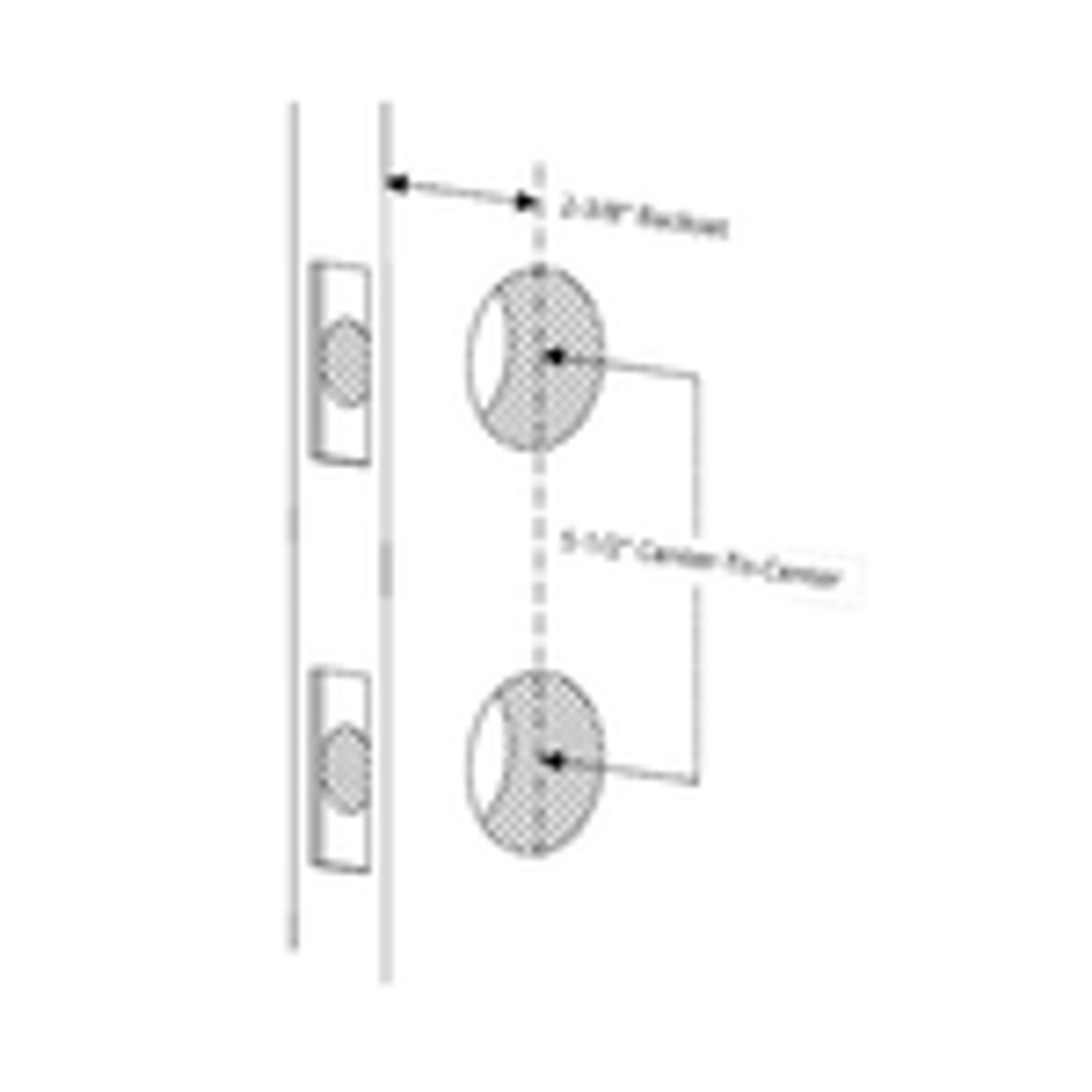

- Standard Handle and Deadbolt Preparation at 2-3/8" backset (2-3/4" available upon request)
- Bore diameter: 2-1/8"
- For double bore, deadbolt is drilled 5-1/2" above the handle

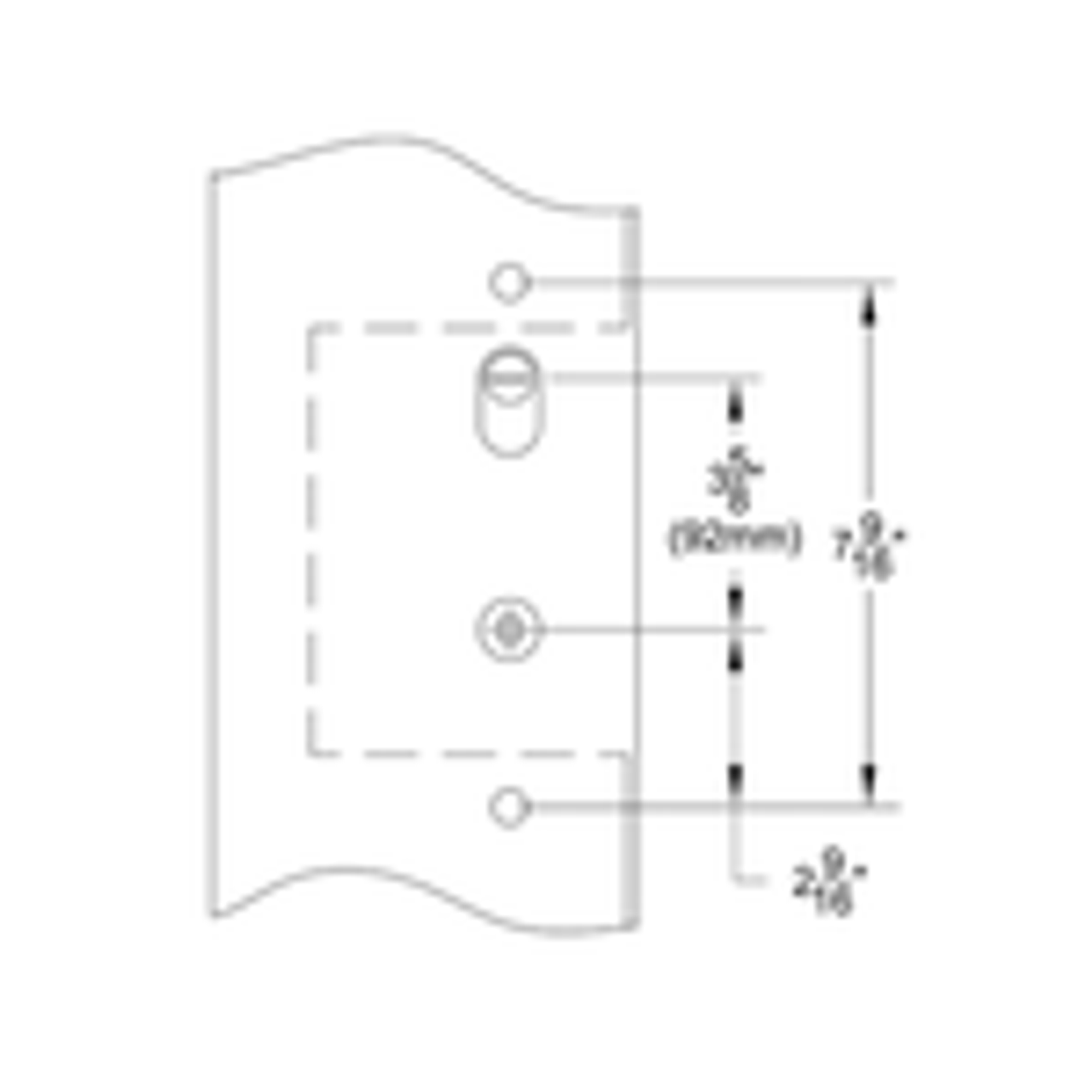

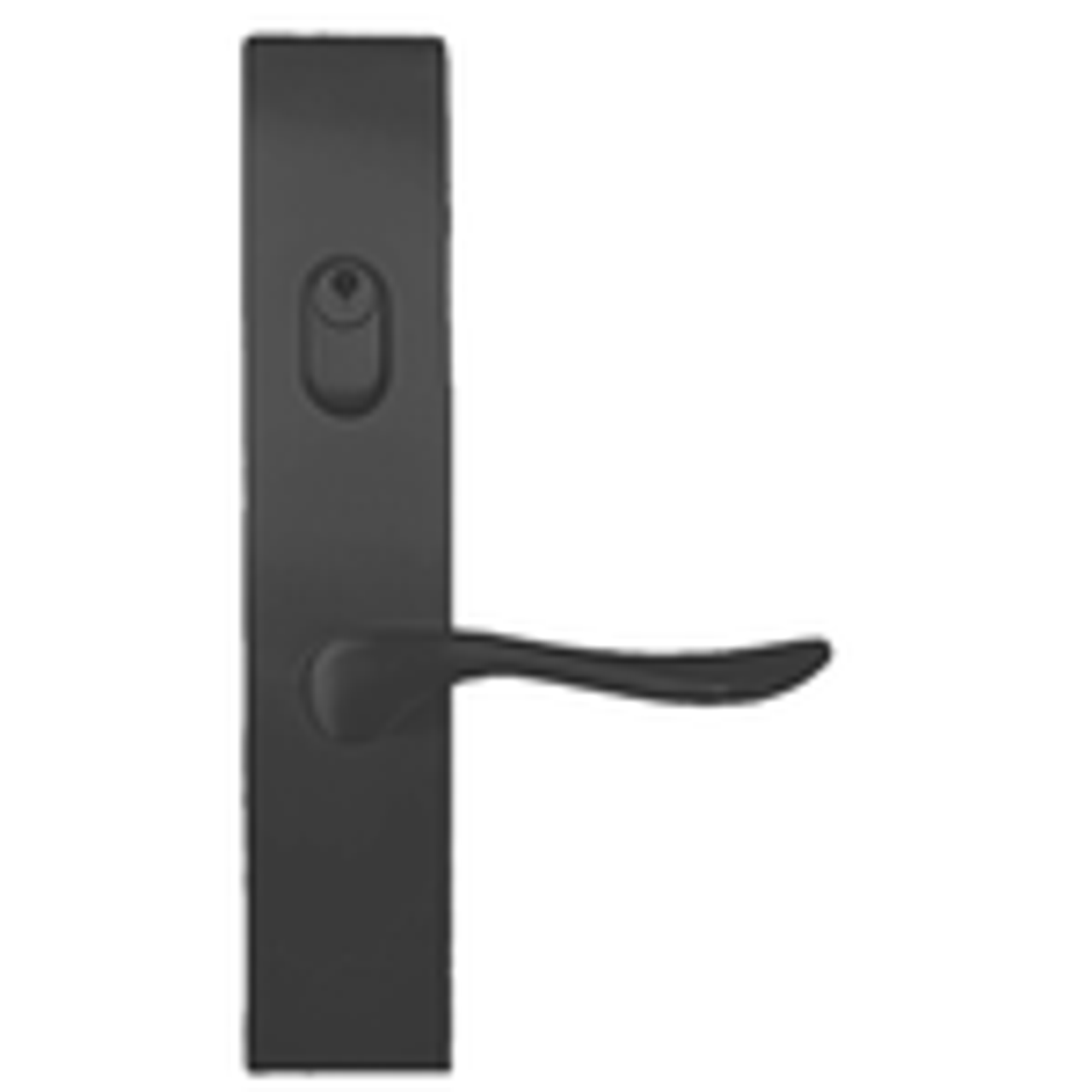

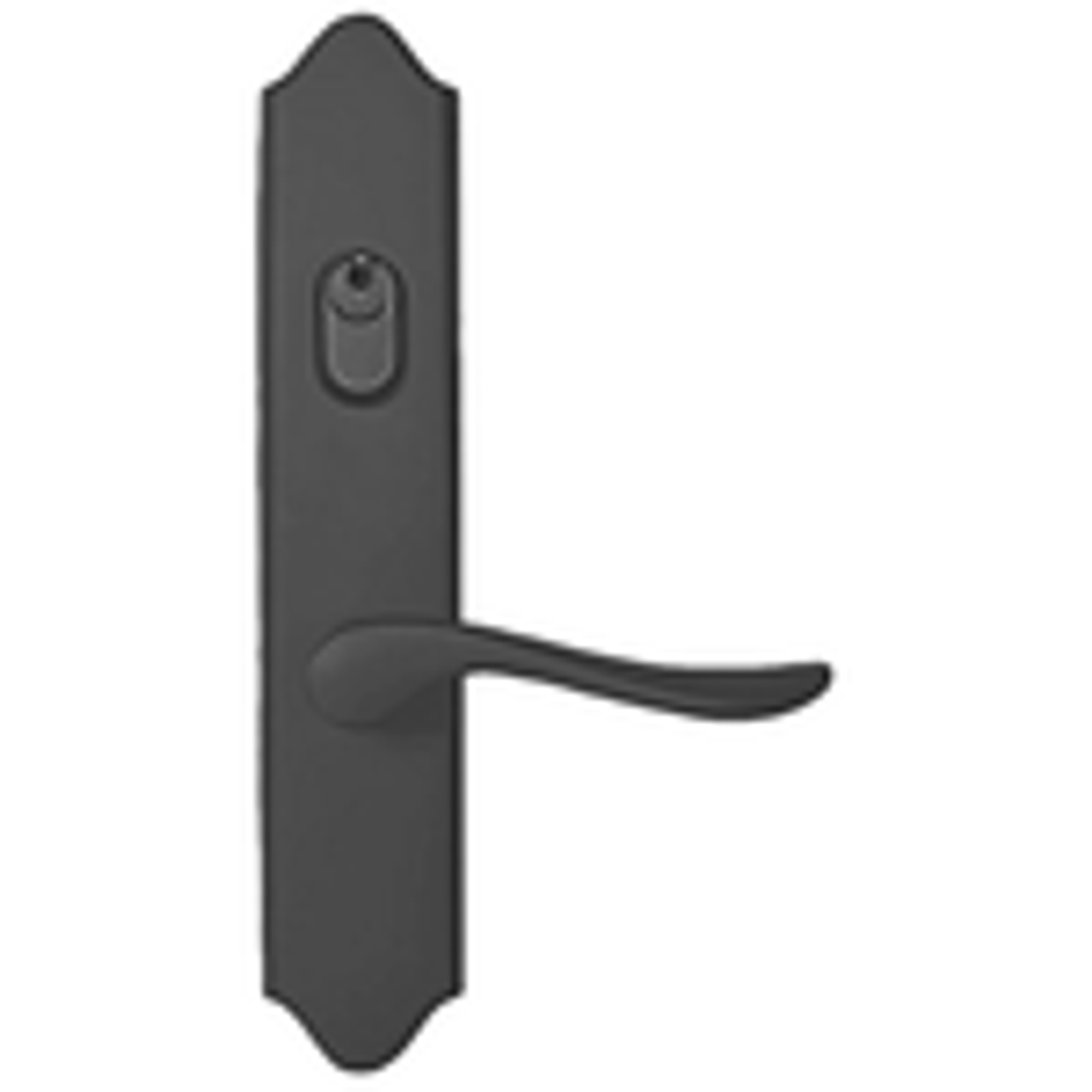

- Multipoint locking also available
Product Compliance & Suitability
Jurisdictions have varying laws, codes and regulations governing construction, installation, etc. Please review applicable laws, codes and regulations for your local jurisdiction to be sure that the construction, installation, and/or use involving the units is compliant.
Florida Approval Code: No
FSC Certified: No
Requirements For Adequate Overhang Protection Of Wood Door
Installer must ensure proper protection requirements are provided where the door will be installed. All doors must be installed providing sufficient protection from exposure to weather including excessive moisture/rain as well as excessive heat due to sun exposure. This protection required includes adequate overhang distance that is at a minimum projection from the home at one half the distance from the floor of the overhang to the ceiling of the overhang.
