Step up your home's curb appeal with the stunning Miranda 7 Lite Diamond Double Square Top Door with arched glass. This special order mahogany wood front door is the perfect choice for those seeking a unique and eye-catching front door. The True Divided Lite clear bevel Low-E glass adds an extra layer of elegance and quality to this already beautiful door. Available in a variety of sizes including custom sizes, this entry door is perfect for new construction, home remodels, or replacement doors. The expert craftsmanship of this door is evident in every detail, from the intricately designed diamond pattern to the beautifully arched glass. Make a statement and impress your guests with this high-quality and visually stunning entry door.
Miranda 7-Lite Diamond Wood Double Front Door With Arch Glass

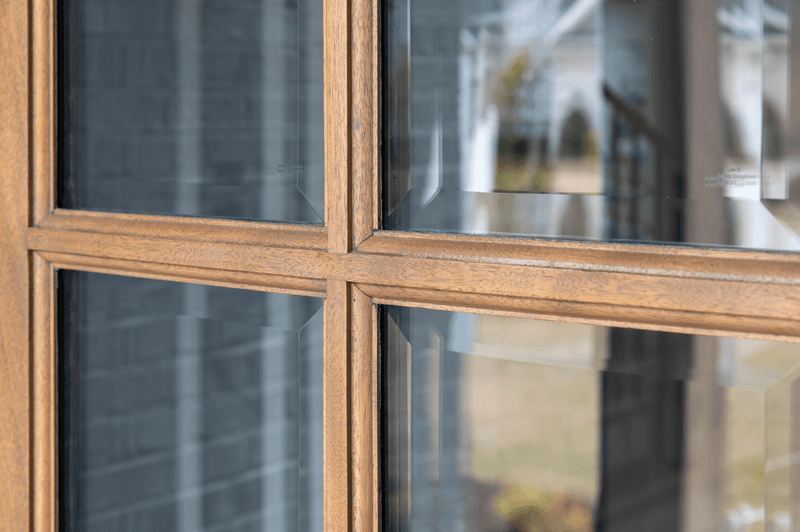

The Miranda 7-Lite square top wood double entry arch door offers an engineered stile and rail construction crafted of a hardwood stave core offering more stability and resistance to warping than solid wood. The Miranda is a True Divided Lite (TDL) entry door featuring individual glass units divided by muntin bars. Low-E glass better insulates your home by keeping heat from escaping during the cooler months, and helps to minimize the heat entering your home during the warmer months.
All wooden front doors are priced and delivered as unfinished (not stained) pre-hung units.
The Miranda offers
- 5'0", 5'4", and 6'0" X 6'8" and 5'0", 5'4", and 6'0" X 8'0" sizes (Custom doors sizes available with quote)
- 1-3/4" stain grade mahogany (Okoume)
- Clear bevel glass
- Low-E glass (Low Emissivity Glass) - Tempered / Insulating Glass
- Wood entry door with engineered stile and rail construction
- Hardwood stave core with mahogany veneer offers more stability and resistance to warping than solid wood.
- Unfinished (not stained), prehung exterior door unit includes the jambs, exterior brickmould, weather-stripping, door sweep, adjustable threshold (sill), 4x4 ball bearing hinges. Double door units include astragal mounted on the passive door with flush-mount slidebolts securing the passive to the frame
Entry Door Sizes
| Door Size | Frame Size | Rough Opening | Outside Brickmould |
|---|---|---|---|
| 5'0" x 6'8" | 62 1/2" x 83" | 63 1/2" x 83 1/2" | 65" x 84 1/4" |
| 5'4" x 6'8" | 66 1/2" x 83" | 67 1/2" x 83 1/2" | 69" x 84 1/4" |
| 6'0" x 6'8" | 74 1/2" x 83" | 75 1/2" x 83 1/2" | 77" x 84 1/4" |
| 5'0" x 8'0" | 62 1/2" x 99" | 63 1/2" x 99 1/2" | 65" x 100 1/4" |
| 5'4" x 8'0" | 66 1/2" x 99" | 67 1/2" x 99 1/2" | 69" x 100 1/4" |
| 6'0" x 8'0" | 74 1/2" x 99" | 75 1/2" x 99 1/2" | 77" x 100 1/4" |
Custom sizes and options available upon request.
Entry Door Energy Performance
U-Factor, Solar Heat Gain Coefficient, and Visible Transmittance in accordance with the National Fenestration Rating Council (NFRC). The National Fenestration Rating Council (NFRC) is a United States 501(c)3 non-profit organization which sponsors an energy efficiency certification and labeling program for windows, doors, and skylights.
- U-Factor (Btu-in/hr-ft2-F) = 0.40
- Solar Heat Gain Coefficient (SHGC) = 0.21
Pre-Hung Door Unit
- 4-9/16" or 6-9/16" wide jambs (with 4-9/16" jamb commonly used for 2x4 framing and 6-9/16" jamb commonly used for 2x6 framing). Custom jamb sizes available upon request.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the prehung door to keep out drafts

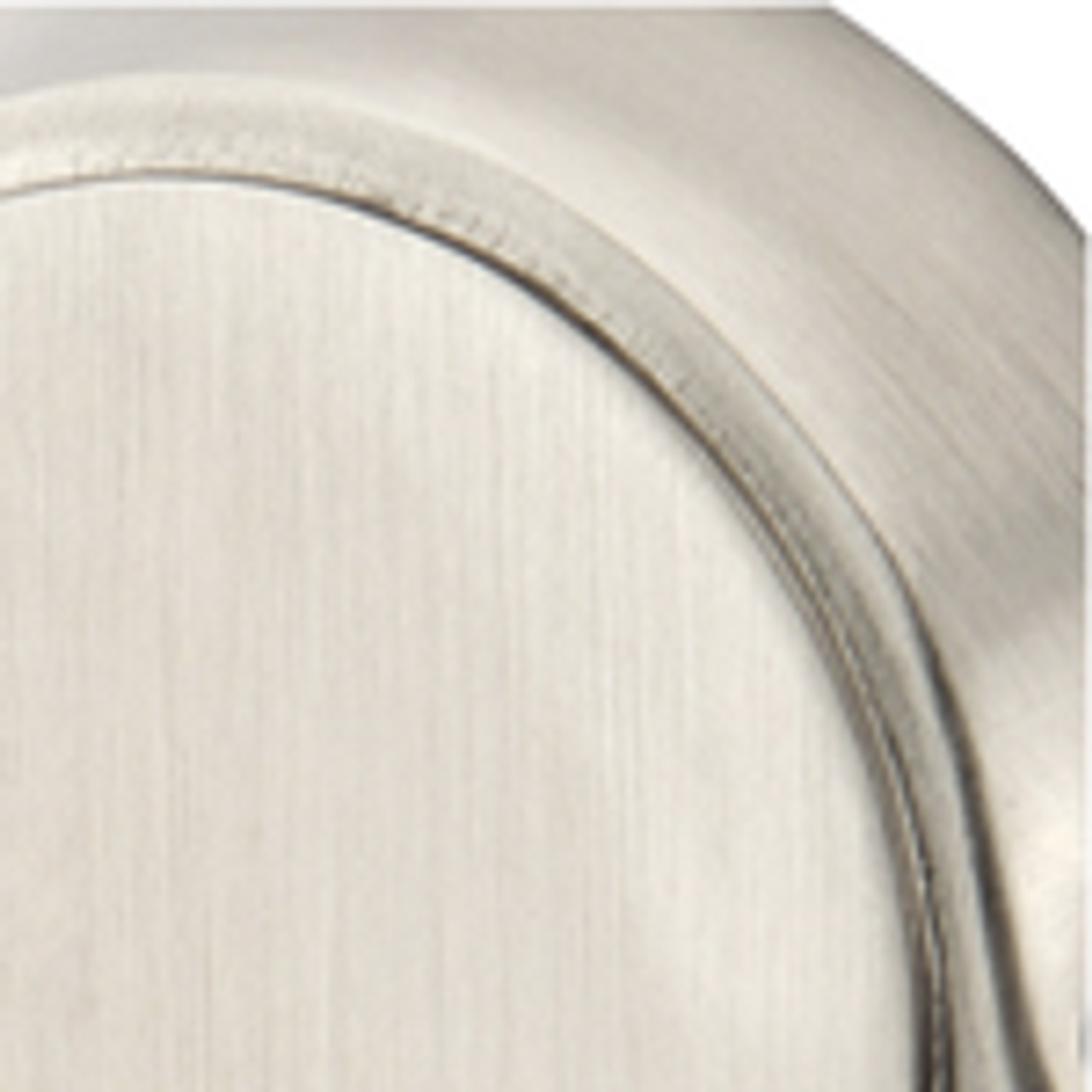

- Commercial grade 4"x4" bearing hinges in Black/Oil Rubbed Bronze or Satin Nickel
- Adjustable aluminum door sill (threshold) in Black/Oil Rubbed Bronze or Satin Nickel
- Door sweep to seal the gap between the bottom of the door and the threshold/sill
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware)
- Exterior brickmould
- Double entry door units include T-astrigal and a pair of flush-mount slide bolts installed on the secondary (passive) door
Door Jambs
Our pre-hung units are hung on on slotted jambs for installation of weather-stripping.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the door to keep out drafts
- 4-9/16" jamb is most commonly used for 2x4 framing
- 6-9/16" jamb is most commonly used for 2x6 framing
- Custom jamb sizes available (additional charges may apply)

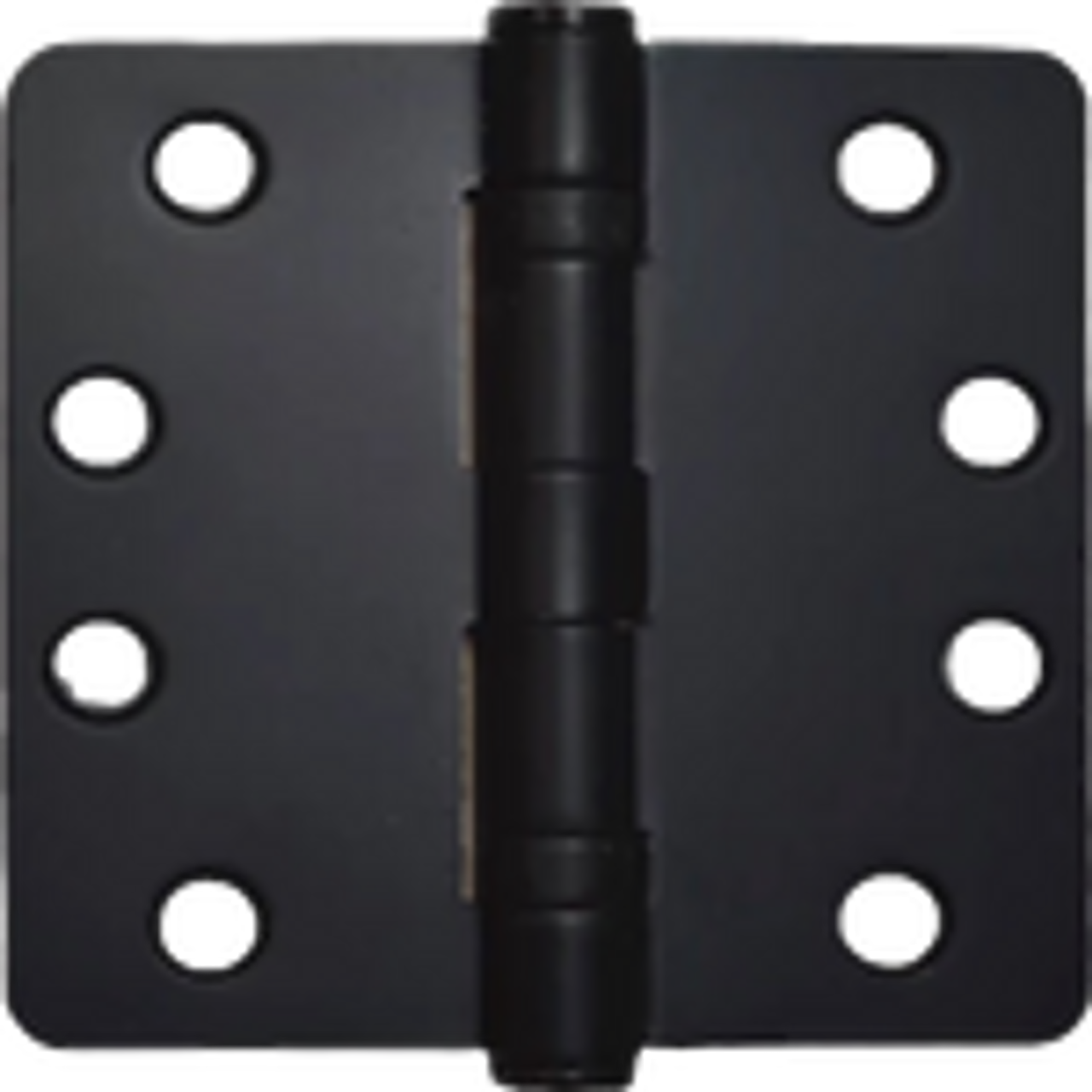

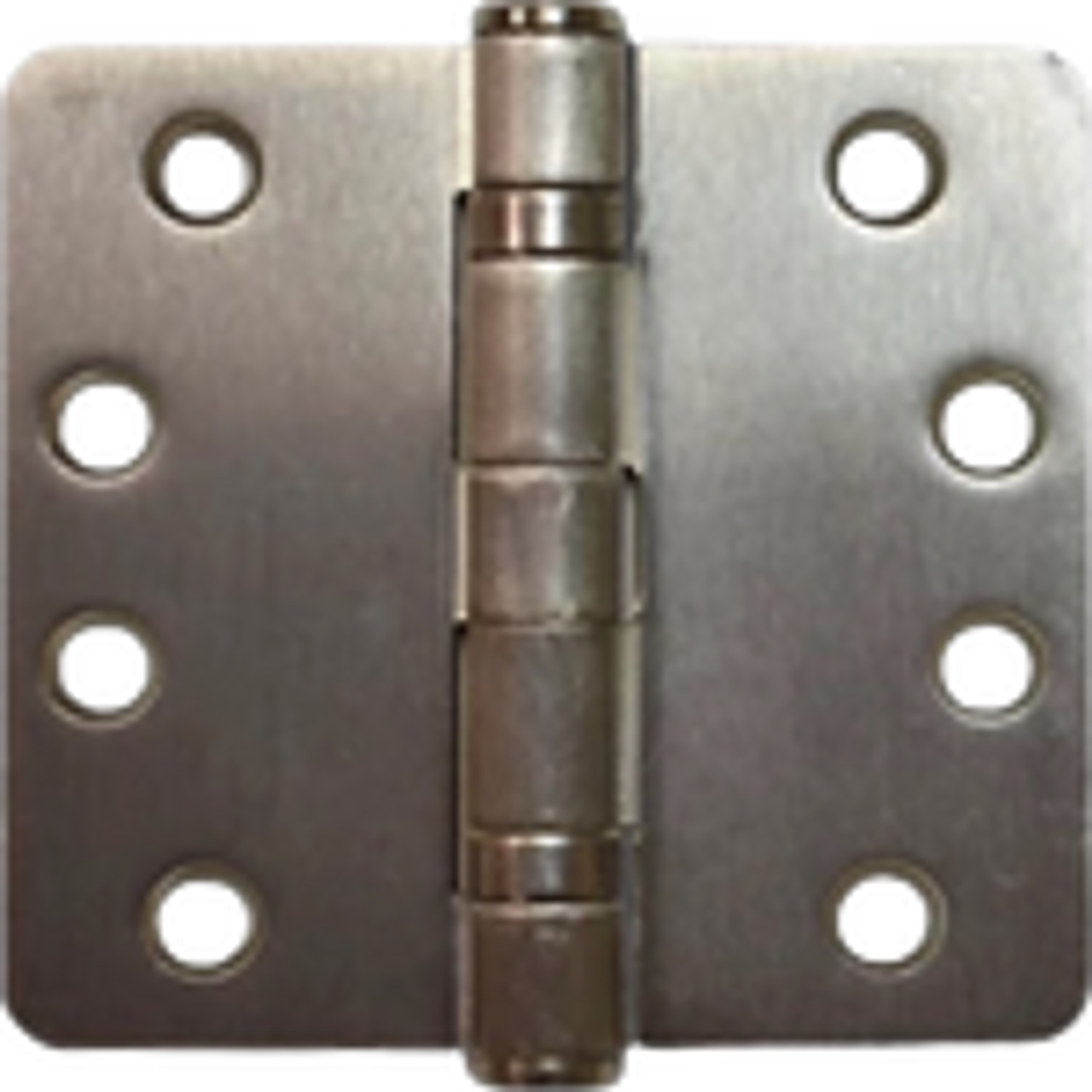

Hinges
Our pre-hung units include commercial grade, 4x4 ball bearing hinges.
- 4"x4" commercial grade ball bearing hinges (Three are used on 6/8 doors and arch top doors, and four on taller square top units).
- Non rising steel pin with button tip and plug
- Rounded 1/4" radius corner
- Black/Oil Rubbed Bronze or Satin Nickel finish

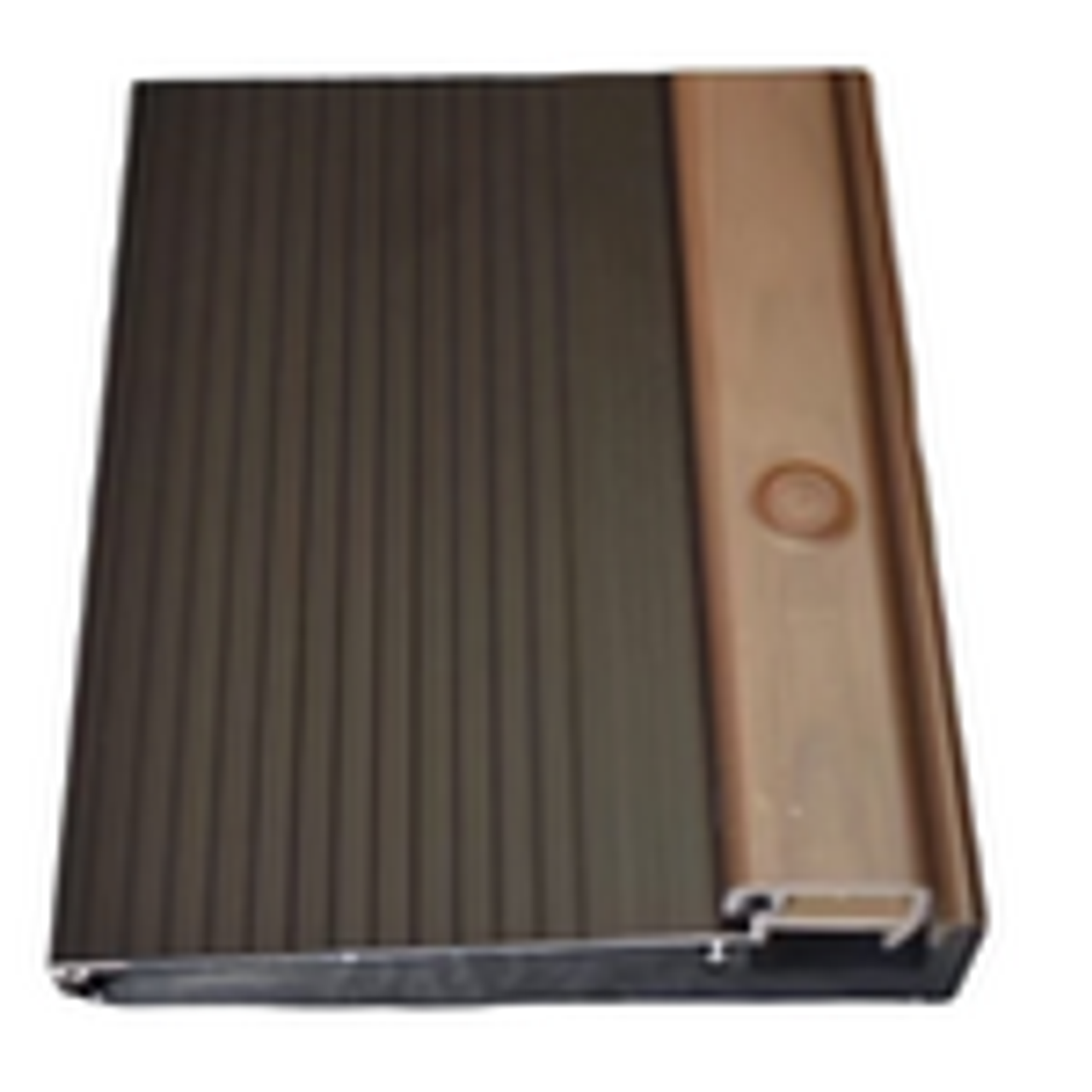

Sill / Threshold
Each pre-hung unit comes with a composite adjustable aluminum sill. The composite aluminum is used to prevent warping, rotting, etc.
- Features a composite substrate that will not warp or rot, eliminating the worries of wood.
- Black/Oil Rubbed Bronze or Satin Nickel finish
- Outswing bumper sill available for outswing units

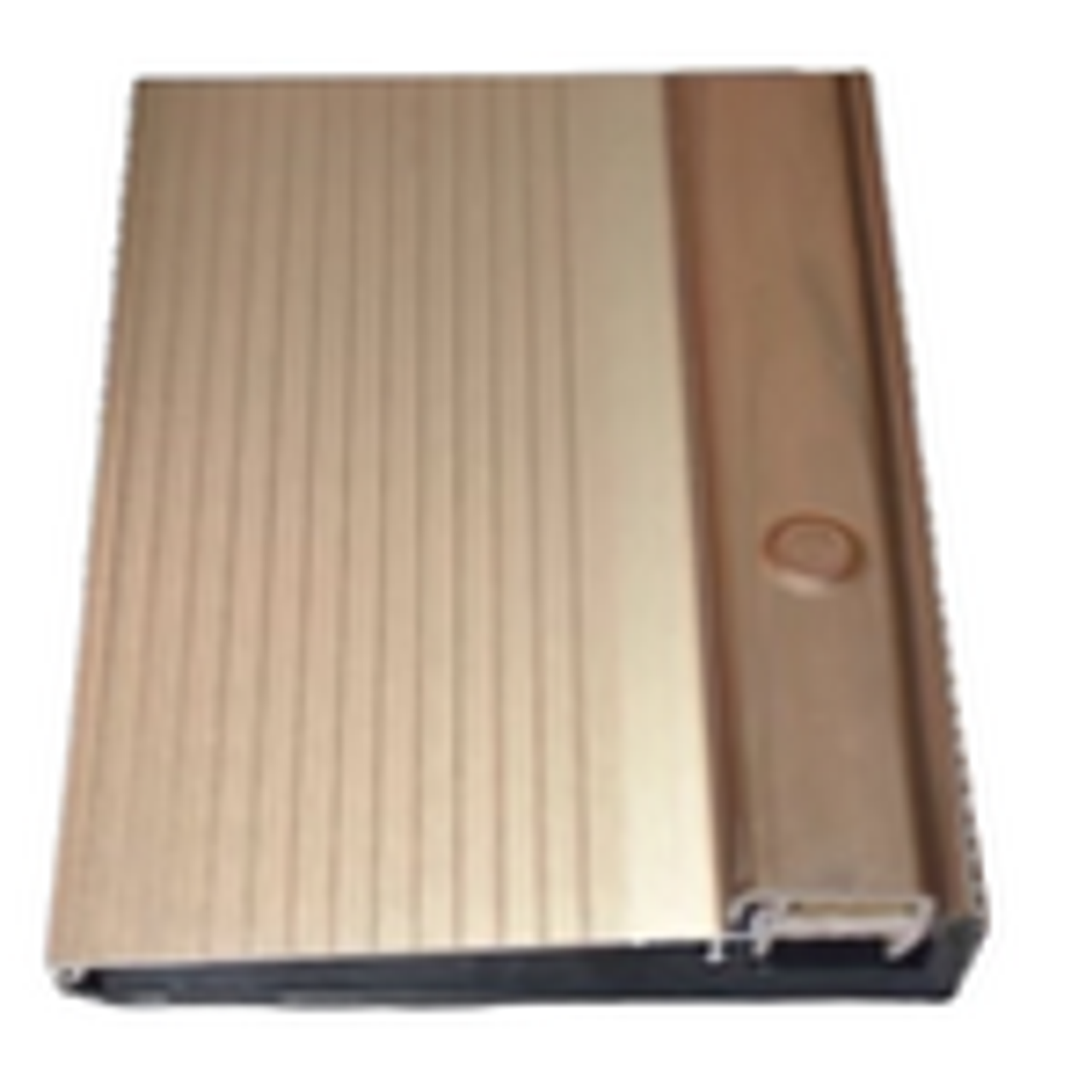

- Low-profile (ADA-compliant) sills are available. Please contact us for pricing
Wood Door Handleset Preparation
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware). Single bore on passive can also be provided.

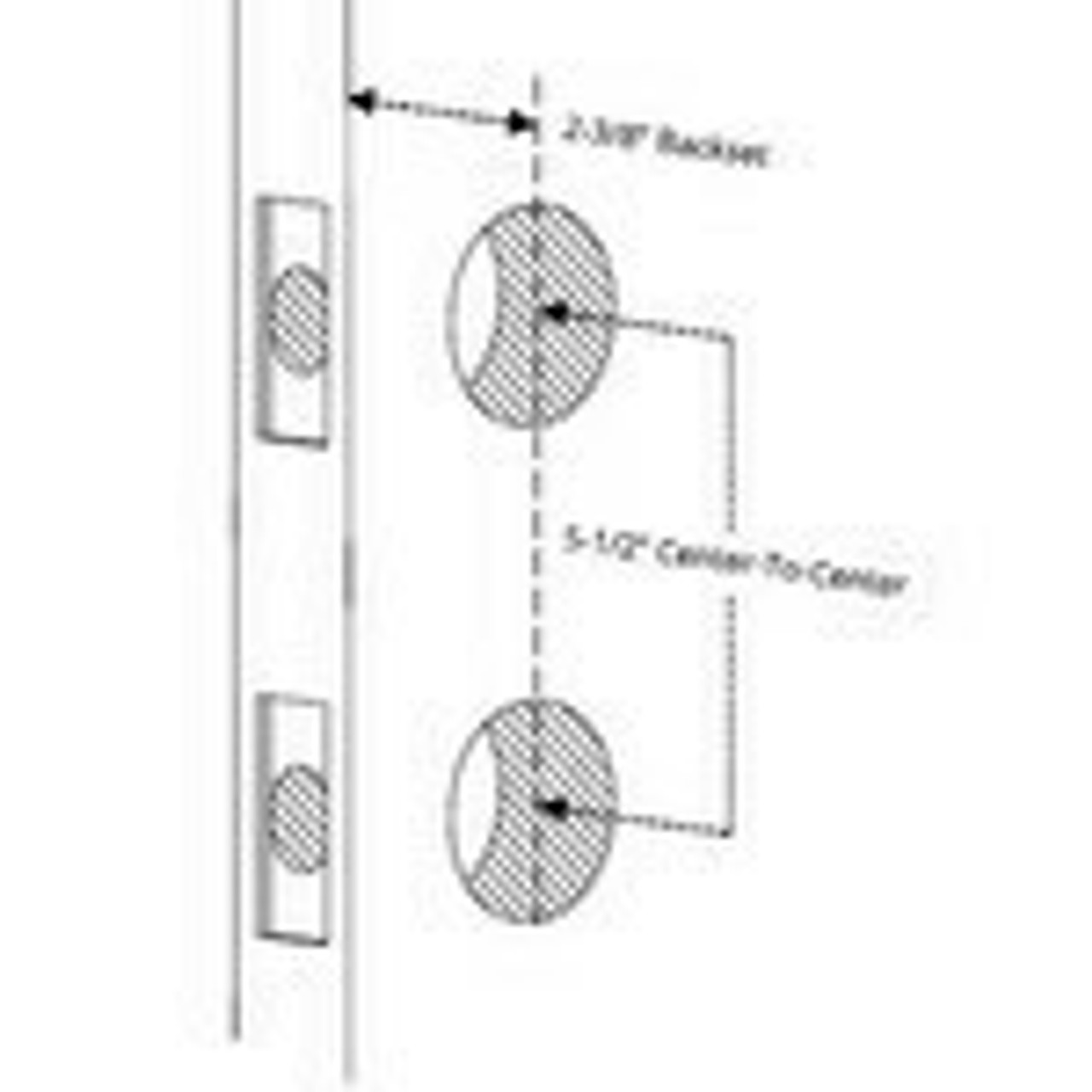

- Standard Handle and Deadbolt Preparation at 2-3/8" backset (2-3/4" available upon request)
- Bore diameter: 2-1/8"
- For double bore, deadbolt is drilled 5-1/2" above the handle

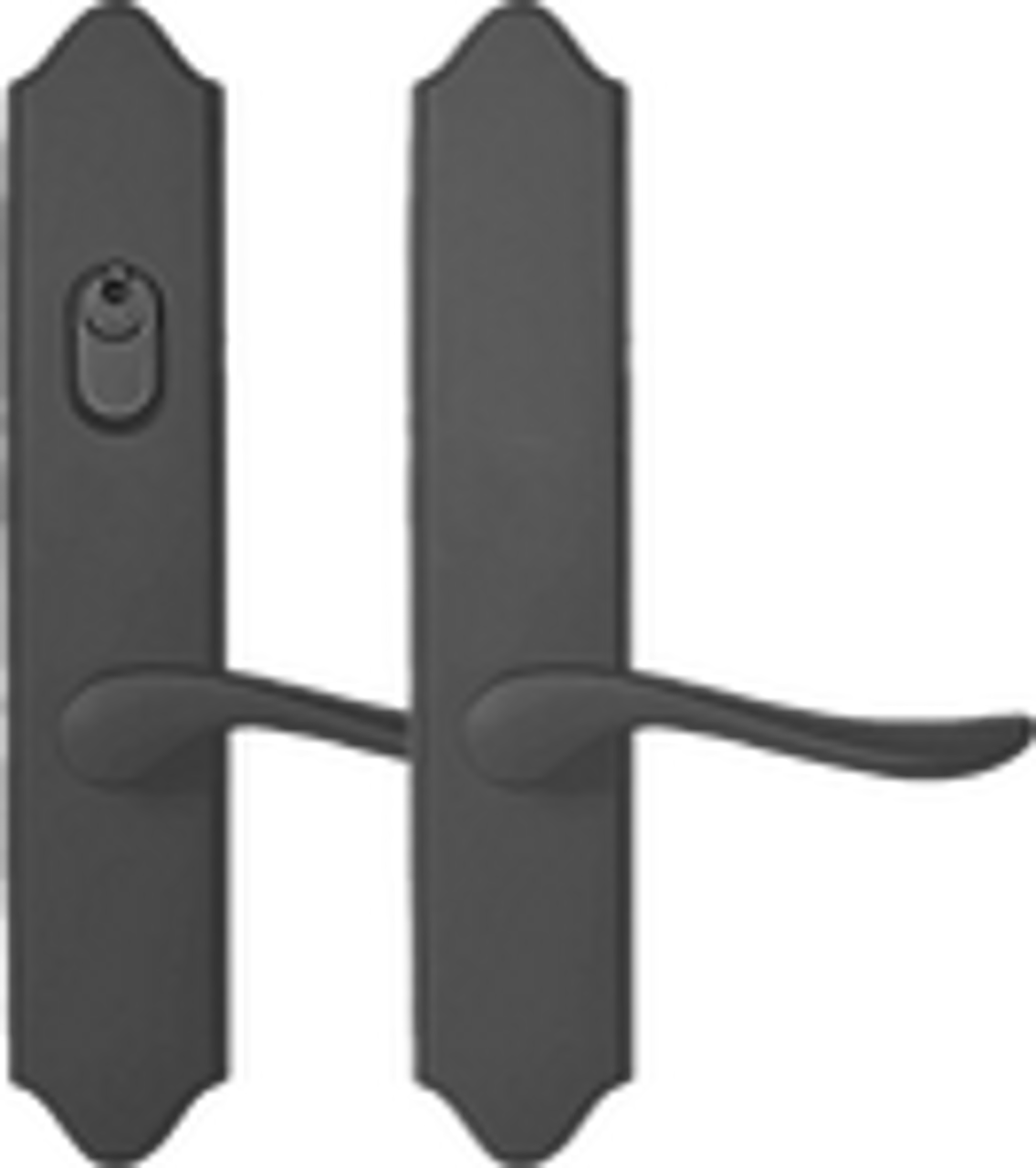

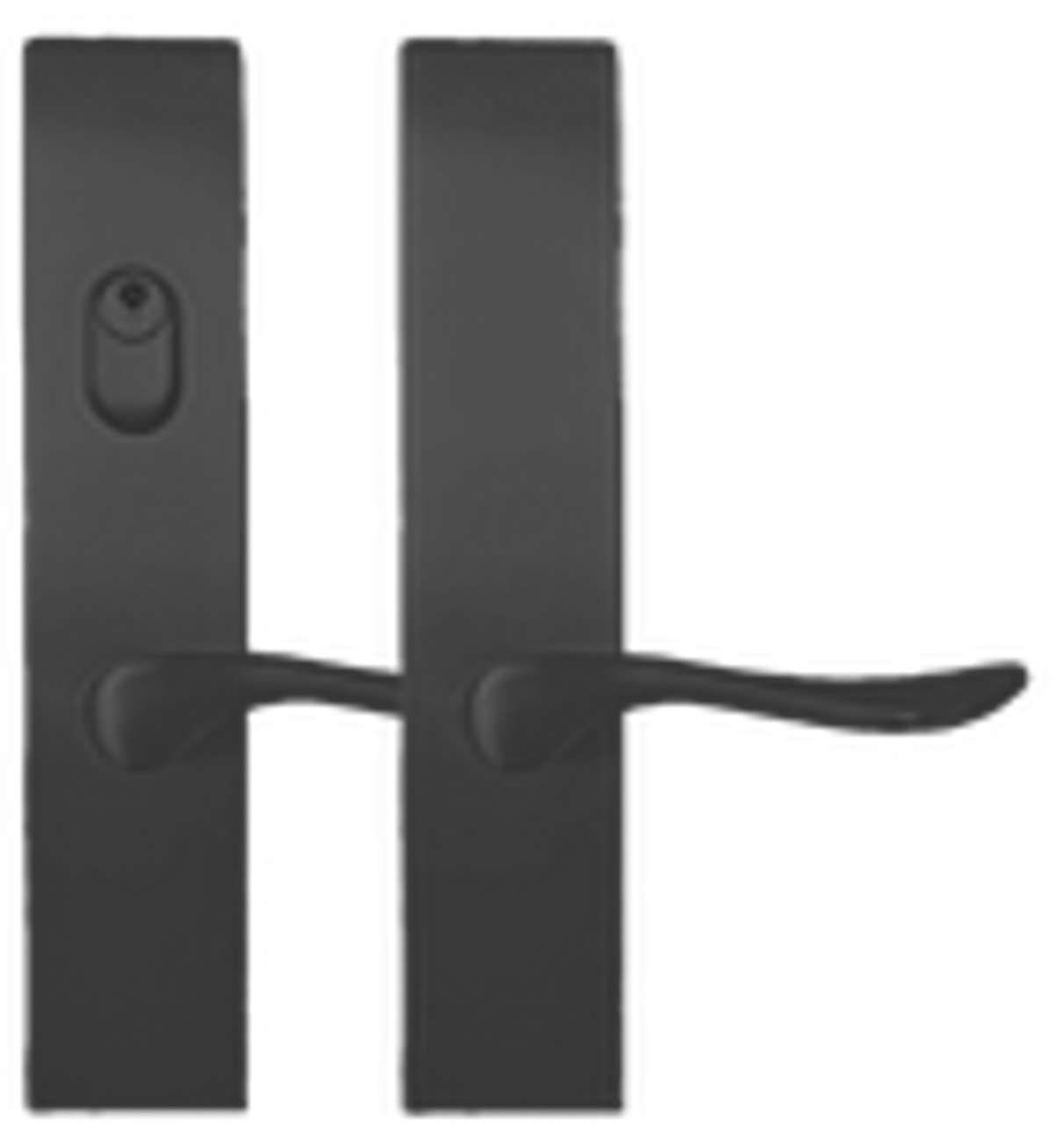

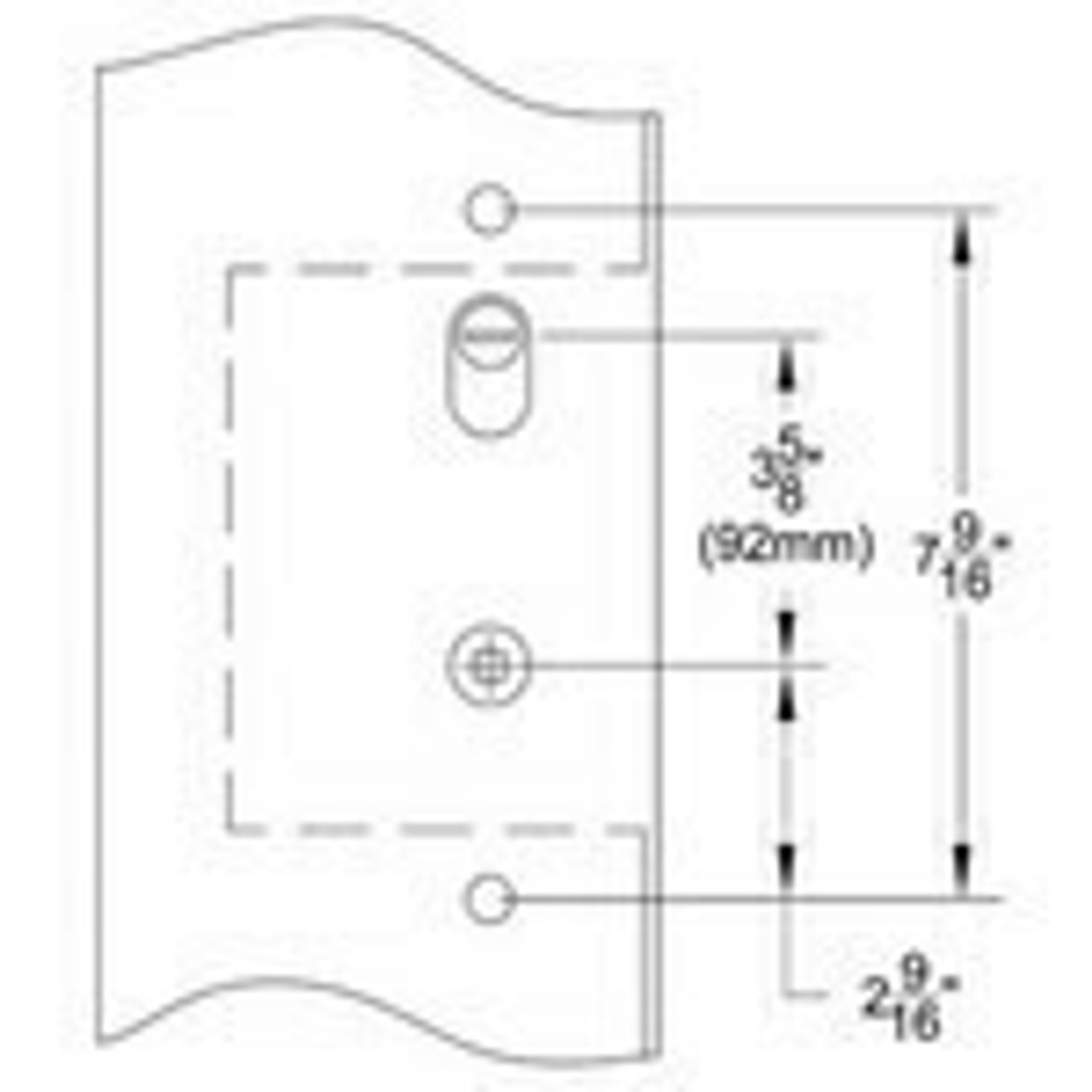

- Multipoint locking also available
Additional Information Regarding Pre-Hung Units
Product Compliance & Suitability
Jurisdictions have varying laws, codes and regulations governing construction, installation, etc. Please review applicable laws, codes and regulations for your local jurisdiction to be sure that the construction, installation, and/or use involving the units is compliant.
Florida Approval Code: No
FSC Certified: No
Requirements For Adequate Overhang Protection Of Wood Door
Installer must ensure proper protection requirements are provided where the door will be installed. All doors must be installed providing sufficient protection from exposure to weather including excessive moisture/rain as well as excessive heat due to sun exposure. This protection required includes adequate overhang distance that is at a minimum projection from the home at one half the distance from the floor of the overhang to the ceiling of the overhang.
Please review our FAQs for common questions, definitions and clarifications.
You are ordering a heavy or oversized item that will be delivered by a freight carrier. Most carriers provide curbside delivery only.
Standard Freight (LTL) Delivery: Your order will be loaded onto a semi-truck and delivered curbside to your home or jobsite; you will be responsible for moving the item from the curb to the desired location. Shipping times will vary based on destination, extreme weather, set delivery schedules to your specific area, and other variables. We utilize a variety of LTL carrier options, and as a result, not all delivery interactions are the same.
Here's what you can generally expect during delivery:
1. Scheduling: Once your shipment is ready for delivery, the carrier will contact you to arrange a delivery date and time window. This allows you to plan for the arrival of your package.
2. Delivery notification: On the day of delivery or shortly before, the carrier may provide a notification to inform you that your shipment is on its way. This notification can be through email, phone call, or text message.
3. Curbside drop-off: When the delivery truck arrives at your location, the driver will typically unload your shipment from the truck and place it on the curbside or the nearest accessible point. This is usually done using a liftgate or pallet jack.
4. Signature or proof of delivery: The carrier may require a signature or proof of delivery to ensure that the package has reached the intended recipient. Make sure to be available or provide instructions for someone else to sign on your behalf if you cannot be present.
5. Unpacking and installation: Curbside delivery includes only the transportation of the package to your location. Unpacking, assembly, or installation of the delivered items is not included.
6. Inspecting the shipment: It is essential to inspect the shipment for any visible damage or discrepancies before signing for it. If there are any concerns, note them on the delivery receipt and inform the carrier immediately. If the crate appears damaged, please do not reject the shipment. We pack and secure the contents inside the crate very well to protect them. Exterior damage to the crate or pallet typically does not result in damage to the contents.
7. Responsibility for moving the shipment: Once the shipment is unloaded at the curbside, it becomes your responsibility to move it into your premises or designated area. This may involve using your own equipment or assistance. Large doors might exceed the capacity of the truck’s lift-gate. In this case, it is the customer's responsibility to unload the doors from the back of the truck. The driver will sometimes assist in removing the product from the truck, but they are not required to do so. Our door units are heavy and therefore we recommend at least 2 people be present at time of delivery. The truck driver might assist with moving it into a location such as a garage, but they are not required to do so.
It's important to note that specific procedures and policies may vary among different carriers and depending on the nature of the shipment. If you have specific requirements or questions about curbside delivery, it's best to communicate directly with the carrier or shipping company to ensure a smooth and satisfactory delivery experience.
