Welcome your guests with the Meridian 9 Lite, a stunning example of the perfect combination of beauty, durability, and quality. This wood front door is crafted from high-quality mahogany wood, ensuring that it will last for years to come. At 42 inches wide and 96 inches tall, this front door is the perfect size to create a grand entrance to any home. The true divided lite design features nine glass panes, providing an abundance of natural light to illuminate your entryway. You can choose between clear flat or seedy low-e glass options, each offering its unique look and feel.
At Grand Entry Doors, we take pride in offering only the highest quality products, and this Meridian 9 Lite True Divided Lite Single Entry Door is no exception. Each door is expertly crafted by skilled artisans using traditional techniques, ensuring that every detail is perfect.
Meridian 9-Lite Mahogany Wood 42" Front Door
As a stock unit, the Meridian 9-Lite True Divide Lite Door is available as a 42” X 96” single wooden front door or entry door, but can be customized offering special order custom door configuration options for doors with sidelights, doors with sidelights and transoms, double front doors and double entry doors. The Meridian entry doors feature true divided lite (TDL) Low E Glass that provides natural light to your home, while still providing thermal and energy efficiency.
The Meridian offers an engineered stile and rail construction crafted of a hardwood stave core offering more stability and resistance to warping than solid wood. The Meridian is a True Divided Lite (TDL) entry door featuring individual glass units divided by muntin bars. Low-E glass better insulates your home by keeping heat from escaping during the cooler months, and helps to minimize the heat entering your home during the warmer months.
All wooden front doors are priced and delivered as unfinished (not stained) pre-hung units.
The Meridian offers
- 1-3/4" stain grade mahogany (Okoume)

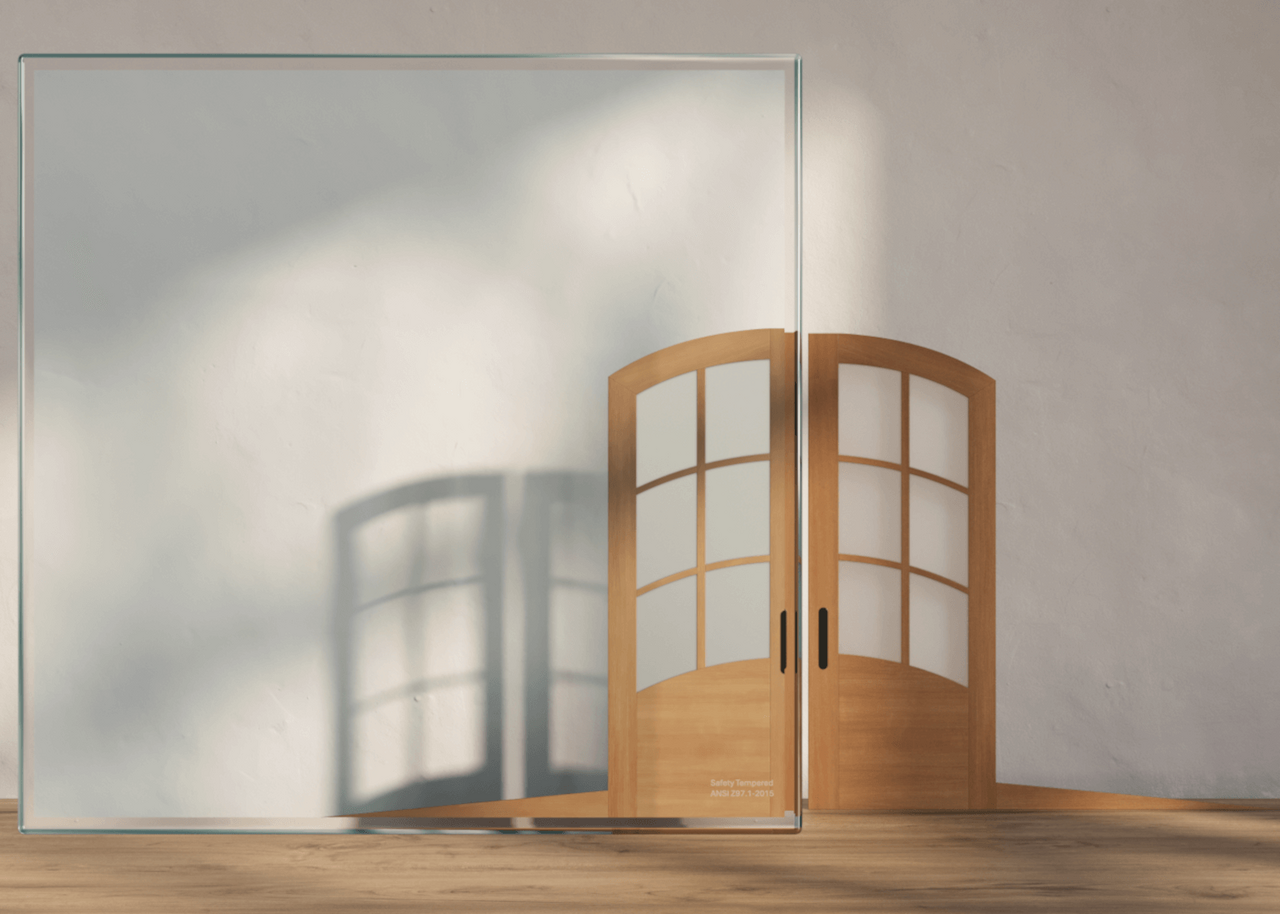

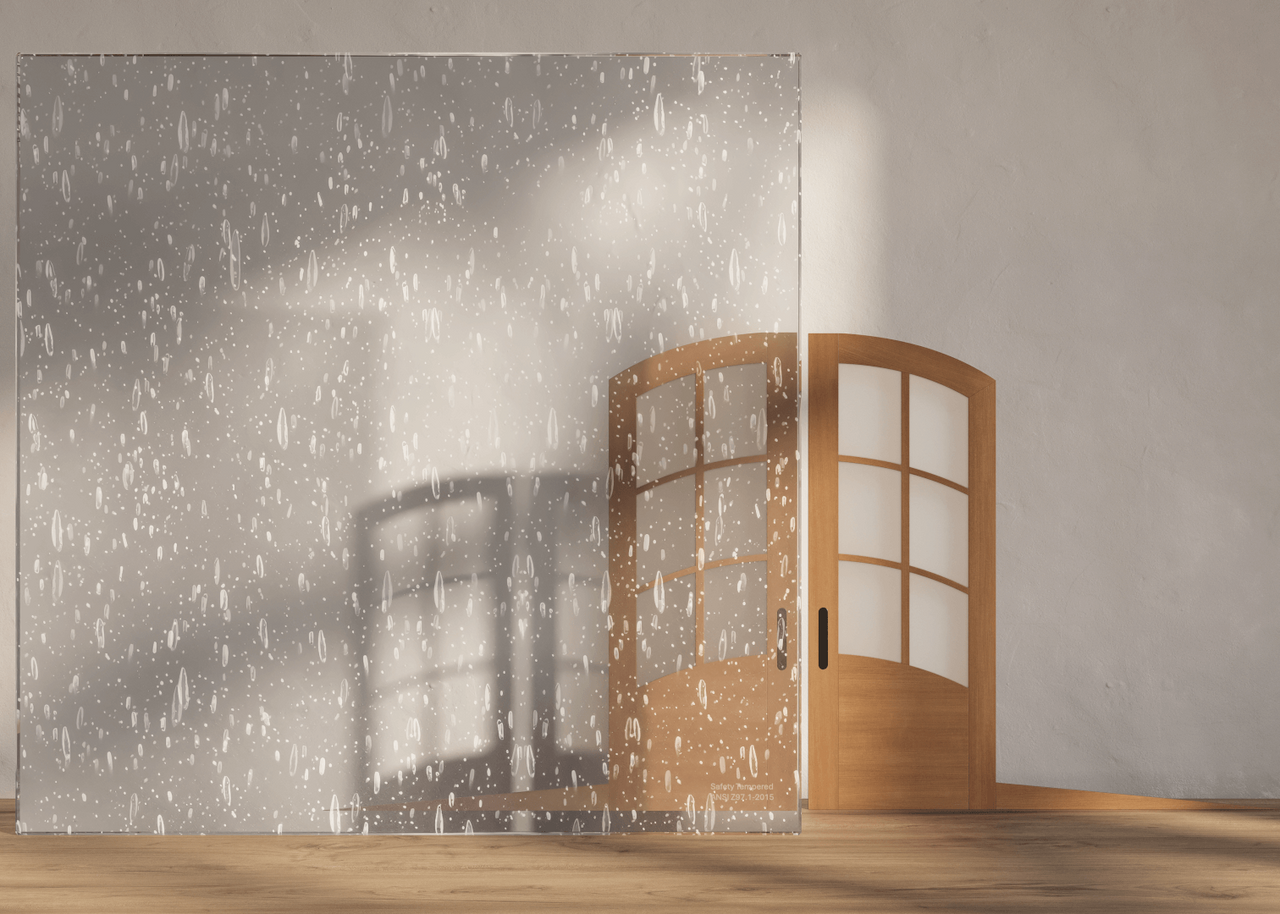

- Clear flat and seedy glass options
- Low-E glass (Low Emissivity Glass) - Tempered / Insulating Glass
- Wood entry door with engineered stile and rail construction
- Hardwood stave core with mahogany veneer offers more stability and resistance to warping than solid wood.
- Unfinished (not stained), prehung exterior door unit includes the jambs, exterior brickmould, weather-stripping, door sweep, adjustable threshold (sill), 4x4 ball bearing hinges.
Entry Door Sizes
| Door Size | Frame Size | Rough Opening | Outside Brickmould |
|---|---|---|---|
| 3'6" x 8'0" | 43 3/4" x 99" | 44 1/2" x 99 1/2" | 46 1/4" x 100 1/4" |
Custom sizes and options available upon request.
Entry Door Energy Performance
U-Factor, Solar Heat Gain Coefficient, and Visible Transmittance in accordance with the National Fenestration Rating Council (NFRC). The National Fenestration Rating Council (NFRC) is a United States 501(c)3 non-profit organization which sponsors an energy efficiency certification and labeling program for windows, doors, and skylights.
- U-Factor (Btu-in/hr-ft2-F) = 0.40
- Solar Heat Gain Coefficient (SHGC) = 0.17
Pre-Hung Door Unit
- 4-9/16" or 6-9/16" wide jambs (with 4-9/16" jamb commonly used for 2x4 framing and 6-9/16" jamb commonly used for 2x6 framing). Custom jamb sizes available upon request.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the prehung door to keep out drafts
- Commercial grade 4"x4" bearing hinges in Black/Oil Rubbed Bronze or Satin Nickel
- Adjustable aluminum door sill (threshold) in Black/Oil Rubbed Bronze or Satin Nickel
- Door sweep to seal the gap between the bottom of the door and the threshold/sill
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware)
- Exterior brickmould
- Double entry door units include T-astrigal and a pair of flush-mount slide bolts installed on the secondary (passive) door
Door Jambs
Our pre-hung units are hung on on slotted jambs for installation of weather-stripping.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the door to keep out drafts
- 4-9/16" jamb is most commonly used for 2x4 framing
- 6-9/16" jamb is most commonly used for 2x6 framing
- Custom jamb sizes available (additional charges may apply)
Hinges
Our pre-hung units include commercial grade, 4x4 ball bearing hinges.
- 4"x4" commercial grade ball bearing hinges (Three are used on 6/8 doors and arch top doors, and four on taller square top units).
- Non rising steel pin with button tip and plug
- Rounded 1/4" radius corner
- Black/Oil Rubbed Bronze or Satin Nickel finish
Sill / Threshold
Each pre-hung unit comes with a composite adjustable aluminum sill. The composite aluminum is used to prevent warping, rotting, etc.
- Features a composite substrate that will not warp or rot, eliminating the worries of wood.
- Black/Oil Rubbed Bronze or Satin Nickel finish
- Outswing bumper sill available for outswing units
- Low-profile (ADA-compliant) sills are available. Please contact us for pricing
Wood Door Handleset Preparation
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware). Single bore on passive can also be provided.
- Standard Handle and Deadbolt Preparation at 2-3/8" backset (2-3/4" available upon request)
- Bore diameter: 2-1/8"
- For double bore, deadbolt is drilled 5-1/2" above the handle
- Multipoint locking also available
Additional Information Regarding Pre-Hung Units
Product Compliance & Suitability
Jurisdictions have varying laws, codes and regulations governing construction, installation, etc. Please review applicable laws, codes and regulations for your local jurisdiction to be sure that the construction, installation, and/or use involving the units is compliant.
Florida Approval Code: No
FSC Certified: No
Requirements For Adequate Overhang Protection Of Wood Door
Installer must ensure proper protection requirements are provided where the door will be installed. All doors must be installed providing sufficient protection from exposure to weather including excessive moisture/rain as well as excessive heat due to sun exposure. This protection required includes adequate overhang distance that is at a minimum projection from the home at one half the distance from the floor of the overhang to the ceiling of the overhang.
