Factory Pre-Hung Door Units

Our Factory Pre-Hung Units

Our doors are sold as pre-hung units. As a pre-hung unit, the door will be sent prepped with hinges, prepped for handle (handleset not included) and assembled in a frame. Each pre-hung door unit includes:

  • 4-9/16" or 6-9/16" wide jambs (with 4-9/16" jamb commonly used for 2x4 framing and 6-9/16" jamb commonly used for 2x6 framing). Custom jamb sizes available upon request.
  • Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the door to keep out drafts
  • Commercial grade 4"x4" bearing hinges in Black/Oil Rubbed Bronze or Satin Nickel
  • Adjustable aluminum door sill (threshold) in Black/Oil Rubbed Bronze or Satin Nickel
  • Door sweep to seal the gap between the bottom of the door and the threshold/sill
  • Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware)
  • Exterior brickmould
  • Double door units include T-astrigal and a pair of flush-mount slide bolts installed on the secondary (passive) door



DOOR JAMBS

Our pre-hung units are hung on on slotted jambs for installation of weather-stripping.

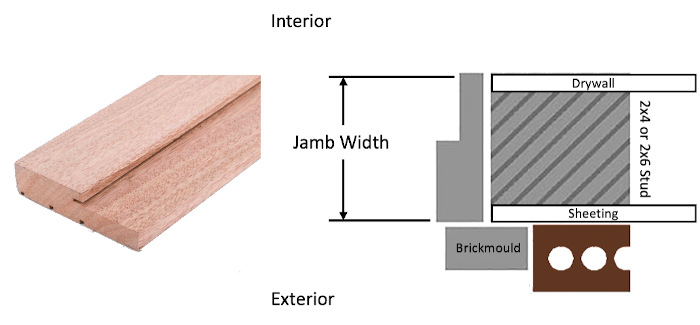

Jamb's width: To measure the width of the jamb, open the door and measure the jamb (see below). Do not include any of the casing in the measurement.

  • Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the door to keep out drafts
  • 4-9/16" jamb is most commonly used for 2x4 framing
  • 6-9/16" jamb is most commonly used for 2x6 framing
  • Custom jamb sizes available

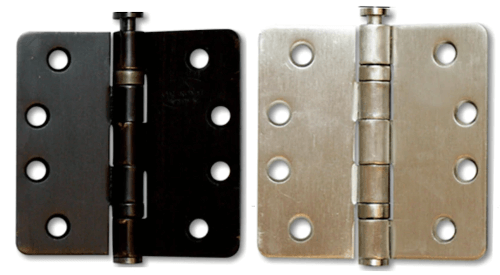

HINGES

Our pre-hung units include commercial grade, 4x4 ball bearing hinges.

  • 4"x4" commercial grade ball bearing hinges (Three are used on 6/8 doors and four on taller units).
  • Non rising steel pin with button tip and plug
  • Rounded 1/4" radius corner
  • Black/Oil Rubbed Bronze or Satin Nickel finish

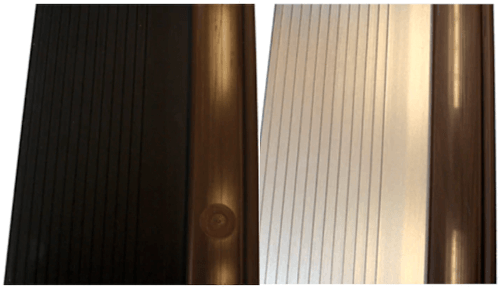

SILL / THRESHOLD

Each pre-hung unit comes with a composite adjustable aluminum sill. The composite aluminum is used to prevent warping, rotting, etc.

  • Features a composite substrate that will not warp or rot, eliminating the worries of wood.
  • Black/Oil Rubbed Bronze or Satin Nickel finish
  • Outswing bumper sill available for outseing units
  • Low-profile (ADA-compliant) sills are available. Please contact us for pricing.


HANDLESET PREPARATION

  • Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware). Single bore on passive can also be provided.
  • Standard Handle and Deadbolt Preparation at 2-3/8" backset (2-3/4" available upon request)
  • Bore diameter: 2-1/8"
  • For double bore, deadbolt is drilled 5-1/2" above the handle
